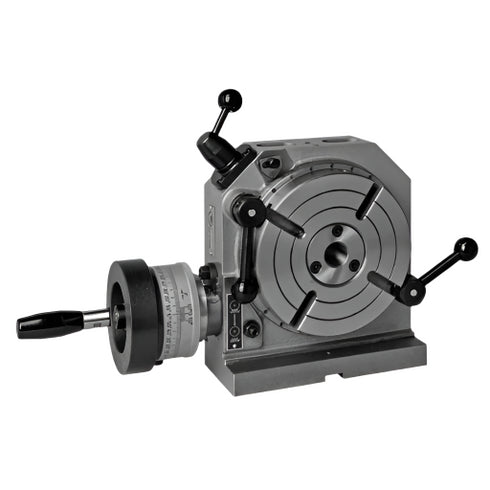

Vertical Rotary Table, BISON
SKU: 375859010100
VENDOR: BISON
Prices without VAT 24%
€4.290,00
DESCRIPTION
The vertical rotary table offers high precision and durability for machining applications. Ideal for indexing operations, it comes with premium accessories to ensure maximum performance.
Features:
-
Chuck capacity: 160 - 400 mm
-
Morse taper mount: MK3 to MK5 (hardened and ground for extended lifetime)
-
Three included indexing plates allow divisions with an accuracy of 1’
-
Indexing via handwheel provides accuracy of 1’ 30”
-
Gear ratio: 1:60, 1:90, 1:120 (depending on table size)
-
Perfect for high-precision metalworking tasks
Included Accessories:
-
Three indexing plates with fastening screws
-
T-slot keys
-
Lifting aid

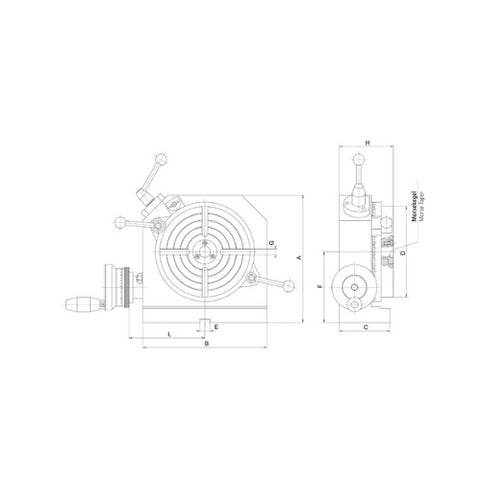

Dimensional Explanation: Chuck capacity / Morse taper mount
| Name | Price | Quantity | Action |
|---|---|---|---|
| 160 mm / MK3 | €4.290,00 | ||
| 200 mm / MK3 | €4.410,00 | ||
| 250 mm / MK3 | €5.400,00 | ||
| 315 mm / MK3 | €6.000,00 | ||
| 400 mm / MK4 | €9.050,00 | ||
| - / MK5 | €14.800,00 |
