Turning toolholder PDJNL
SKU: PDJNL 1616H11
VENDOR: ZCC CT
Prices without VAT 24%
€44,90
DESCRIPTION

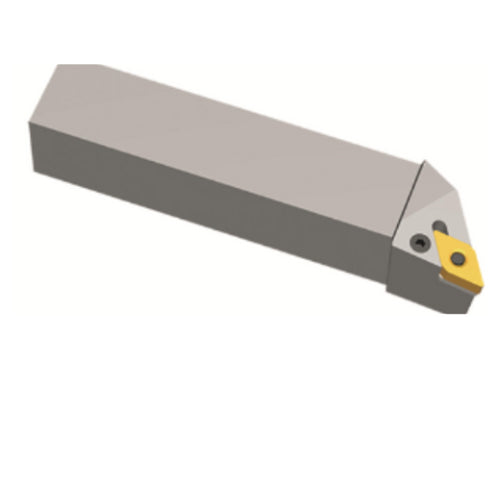

The PDJNL Turning Toolholders are left-handed toolholders designed specifically for DNMG inserts. These toolholders provide precision and durability, making them ideal for left-hand turning operations in various machining tasks. Their reliable design ensures excellent performance in demanding cutting conditions.

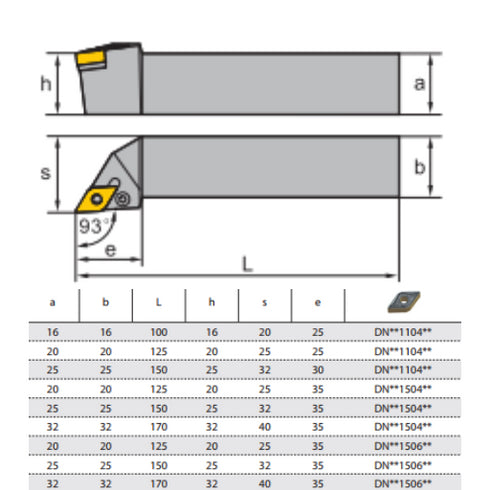

Dimensions Explanation:
- a x b mm
Package Includes:
- One PDJNL turning toolholder
- One wrench for insert replacement
Note:
The insert is not included in the package but can be purchased separately.
For detailed information, cutting conditions, and specifications, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| 16 x 16mm / DN** 1104** | €44,90 | ||
| 20 x 20mm / DN** 1104** | €44,90 | ||
| 25 x 25mm / DN** 1104** | €54,50 | ||
| 20 x 20mm / DN** 1504** | €54,50 | ||
| 25 x 25mm / DN** 1504** | €54,50 | ||
| 32 x 32mm / DN** 1504** | €67,50 | ||
| 20 x 20mm / DN** 1506** | €52,00 | ||
| 25 x 25mm / DN** 1506** | €54,50 | ||
| 32 x 25mm / DN** 1506** | €59,00 | ||
| 32 x 32mm / DN** 1506** | €67,50 |
