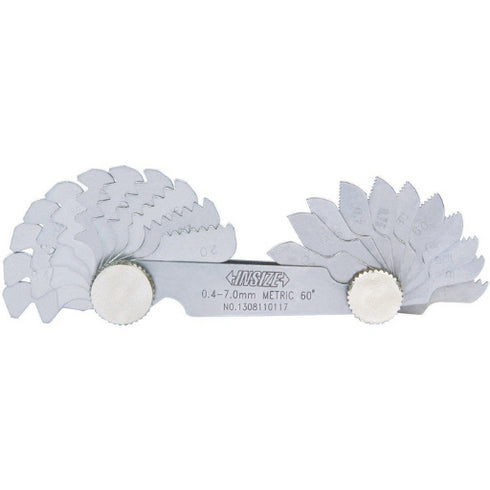

Thread pitch gauge Metric
SKU: 4820 - 124
VENDOR: INSIZE
Prices without VAT 24%
€13,80
DESCRIPTION
Click here for TECHNICAL FEATURES
Thread pitch gauge Metric - American UNC - English Whitworth
Spiral gauge for measuring spiral in screws or threaded holes. The thread gauge measures - checks the distance between the teeth of the thread, usually measured in millimeters (mm) or teeth per inch (TPI - threads per inch)
We have thread gauges for all threads: Metric M, fine pitch MF, inch BSW, BSF, UNC,UNF, UNEF, BSP pipes, etc.
Simply match the threads to another screw or bolt with the tip of the spirometer, if the threads line up perfectly, you have correctly located the thread pitch as shown in the diagram below.
Dimentional Explanation : Range - Blades - Thread
| Name | Price | Quantity | Action |
|---|---|---|---|
| 0.25 - 7.00 mm - 24 - 60° metric | €13,80 | ||
| 4 - 42 TPI - 30 - 60° unified | €16,50 | ||
| 4 - 62 TPI - 28 - 55° whitworth | €16,50 | ||
| 0.25 - 6.00 mm & 4 - 62 TPI - 52 - 60° μετρικό & 55° whitworth | €12,90 | ||
| 0.4 - 7.00 mm & 4 - 62 TPI - 50 - 60° μετρικό & 55° whitworth | €16,50 |
