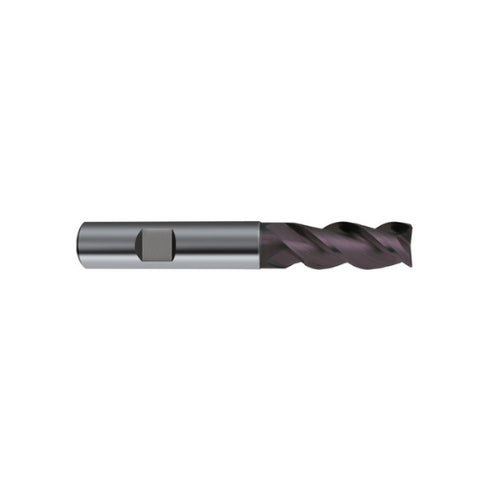

SuperF-UT End Mills N-3, 3-Fluted, 54565
SKU: ST-54565-03
VENDOR: STOCK
Prices without VAT 24%
SuperF-UT N-3 end mills are designed for keyway production in materials up to 1400 N/mm². Featuring 3 flutes with increased flute space for excellent chip evacuation and stability during operation. Micro-corner protection, neck clearance, and centre cutting geometry provide precise and durable performance. The unequal helix reduces vibration and ensures smooth, chatter-free machining.
Features:
-
3 flutes with increased chip space
-
Ideal for keyway cutting
-
Suitable for materials up to 1400 N/mm²
-
Micro-corner protection for edge durability
-
Neck clearance for deeper cutting
-
Centre cutting geometry
-
Unequal helix for smooth, vibration-free cutting
Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information, cutting conditions, and specifications, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 x 8 x 57 - 8mm | €52,77 | ||
| Φ3.5 x 10 x 57 - 10mm | €53,51 | ||
| Φ3.7 x 11 x 57 - 11mm | €55,50 | ||
| Φ4 x 11 x 57 - 11mm | €48,85 | ||
| Φ4.5 x 11 x 57 - 11mm | €53,51 | ||
| Φ4.7 x 13 x 57 - 13mm | €55,50 | ||
| Φ5 x 13 x 57 - 13mm | €48,85 | ||
| Φ5.5 x 13 x 57 - 13mm | €53,51 | ||
| Φ5.7 x 13 x 57 - 13mm | €55,50 | ||
| Φ6 x 13 x 57 - 16mm | €60,75 | ||
| Φ6.5 x 16 x 63 - 16mm | €66,81 | ||
| Φ7 x 16 x 63 - 19mm | €72,28 | ||
| Φ7.5 x 19 x 63 - 19mm | €78,88 | ||
| Φ8 x 19 x 63 - 19mm | €82,91 | ||
| Φ8.5 x 19 x 72 - 19mm | €90,96 | ||
| Φ9 x 19 x 72 - 19mm | €102,95 | ||
| Φ9.5 x 22 x 72 - 22mm | €113,72 | ||
| Φ10 x 22 x 72 - 22mm | €123,08 | ||
| Φ12 x 26 x 83 - 26mm | €159,17 | ||
| Φ16 x 32 x 92- 32mm | €272,85 | ||
| Φ20 x 38 x 104- 38mm | €414,44 |
