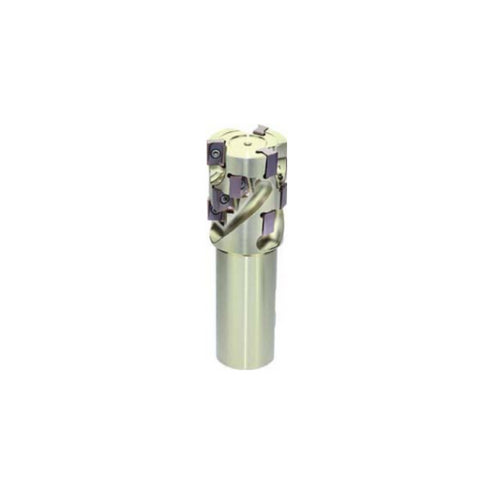

Milling head EMP13 90° ANGX Weldon

The EMP13 90° face mill is designed for use with the ANGX insert, covering a diameter range of Ø25 – 40mm. Suitable for processing steel, alloy steels, and non-ferrous metals, this face mill uses double-sided inserts with four cutting edges, providing excellent stability and performance at greater cutting depths. The Weldon system ensures a secure connection and stability during machining. Ideal for heavy-duty applications and demanding tasks.

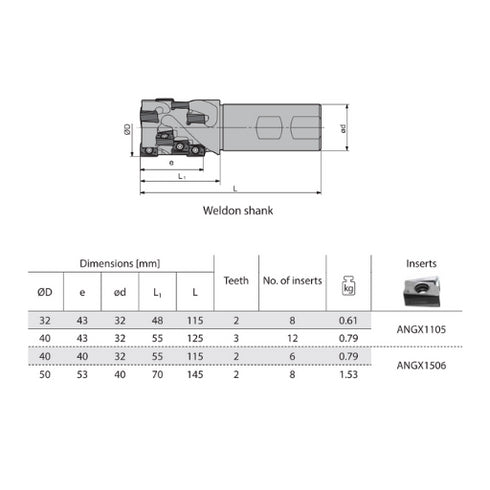

Dimension Explanation:
ØD / Teeth / Insert / Cooling Symbol

Important Notes:

• A key for insert replacement is included with the goods.
• The insert is not included in the package and can be purchased separately.

For detailed information and cutting conditions, download the PDF file here.
