Milling head EMP13 90° ANGX
SKU: EMP13050x43A22AN1103
VENDOR: ZCC CT
Prices without VAT 24%
€463,50
DESCRIPTION

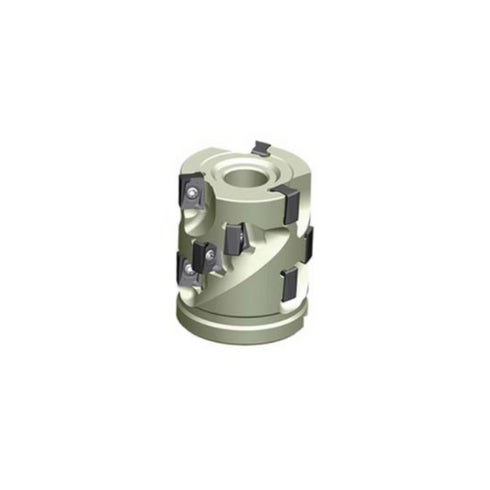

The EMP13 90° face mill is designed for use with the ANGX insert, covering a diameter range of Ø50 – 80mm. It is suitable for steel, alloy steels, and non-ferrous metals. This tool uses double-sided inserts with four cutting edges, offering high stability and the ability to achieve greater cutting depths. Compatible with the Weldon system.
Notes:
- A key for insert replacement is provided with the goods.
- The insert is not included in the package and can be purchased separately.

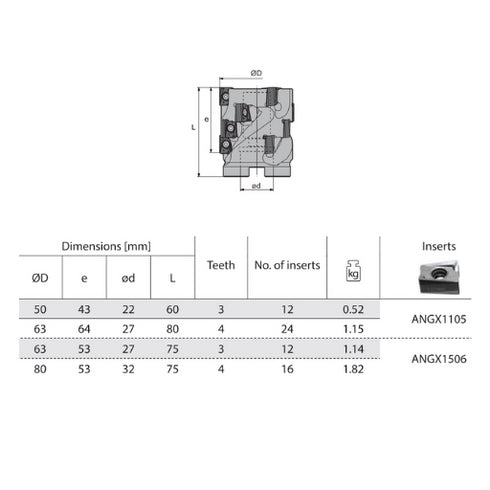

Dimensional explanation: ØD / Teeth / Insert/ Coolant Symbol
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Ø50mm / z3 / ANGX1105 | €463,50 | ||
| Ø63mm / z4 / ANGX1105 | €699,50 | ||
| Ø63mm / z3 / ANGX1506 | €397,90 | ||
| Ø80mm / z4 / ANGX1506 | €510,90 |
