Milling head EMP04 90°
SKU: EMP04020XP20AP1101
VENDOR: ZCC CT
Prices without VAT 24%
€206,00
DESCRIPTION

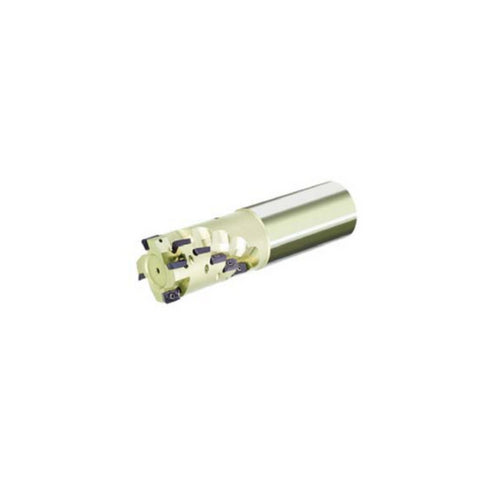

The EMP04 90° face milling cutter is designed for the APKT insert with a diameter range of Ø20 – 40mm. Suitable for steel, stainless steel, carbon steel, non-ferrous metals, and heat-resistant alloys. Ideal for milling with a square shoulder, slotting, and plunging operations. It features inserts with two cutting edges for improved performance and longer tool life.
Features
- Materials of Application: Suitable for steel, stainless steel, carbon steel, non-ferrous metals, and heat-resistant alloys.
- Insert APKT: Two cutting edges for increased performance and longer tool life.
- Dimensions Explanation:
- ØD: Cutter diameter.
- Teeth: Number of cutting edges.
- Insert: Type of insert.
- Cooling Symbol: Indications for cooling requirements.
Included in the Packaging
- A key for insert replacement.
Note
The insert is not included in the packaging and can be purchased separately.

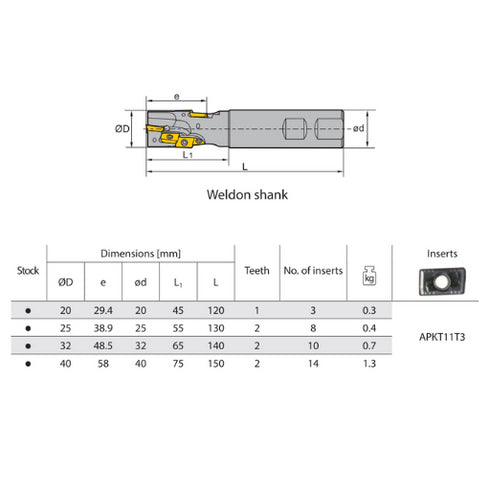

Dimensional explanation: ØD / Teeth / Insert/ Coolant Symbol
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Ø20mm / z1 / APKT11T3 | €206,00 | ||
| Ø25mm / z2 / APKT11T3 | €262,90 | ||
| Ø32mm / z2 / APKT11T3 | €400,90 | ||
| Ø40mm / z2 / APKT11T3 | €587,50 |
