Solid Carbide Thread Mills – Tapered End Mills for NPT/NPTF/BSPT, TiAlN Coated, 4Cut
SKU: 4C-TEM-5
VENDOR: 4Cut
Prices without VAT 24%
€68,10
DESCRIPTION
Solid micrograin carbide tapered thread mill designed for pre-thread milling operations on NPT, NPTF, and BSPT pipe threads. TiAlN coating ensures excellent wear resistance and thermal stability, making it ideal for precision CNC machining and long tool life.
Features:
-
Material: Solid micrograin carbide
-
Coating: TiAlN for enhanced heat resistance
-
Application: Pre-thread milling for NPT / NPTF / BSPT threads
-
Flute: 30° right-hand spiral
-
Shank: Cylindrical, DIN 6535 HA, h6 tolerance
-
Diameter D: 5.0 – 17.0mm (+0 / -0.050 tolerance)

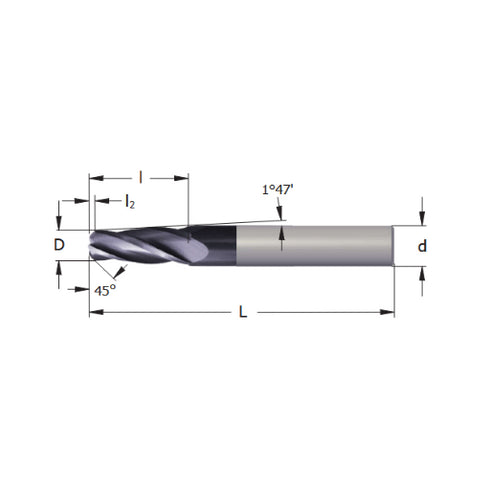

Dimensional explanation: D x l x L - d mm

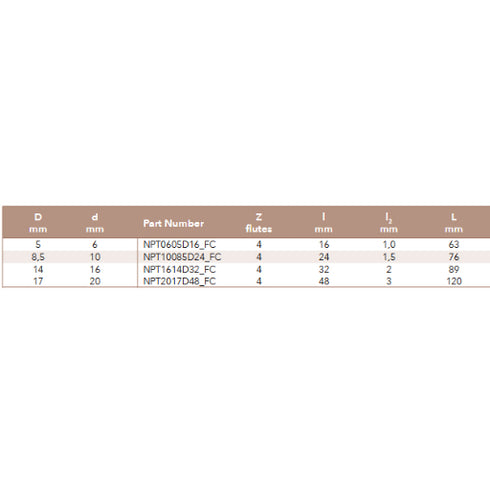

| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ5 x 16 x 63 - 6mm | €68,10 | ||
| Φ8.5 x 24 x 76 - 10mm | €110,60 | ||
| Φ14 x 32 x 89 - 16mm | €229,40 | ||
| Φ17 x 48 x 120 - 20mm | €413,10 |
