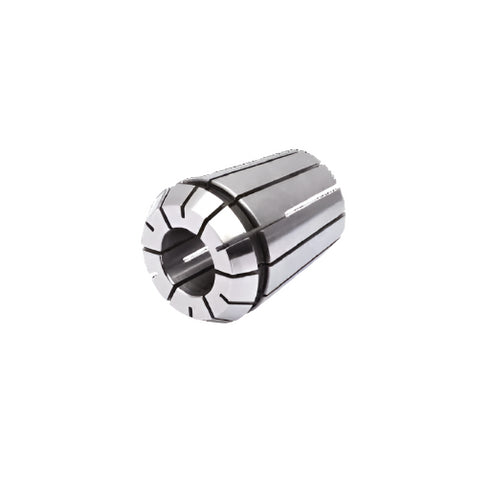

Precision collets
SKU: COL-ER25-2P
VENDOR: ΓΕΡΜΑΝΙΑΣ
Prices without VAT 24%
€46,10
DESCRIPTION
The ER 25 precision collet is manufactured according to DIN 6499 B (ISO 15488 B) and allows for the secure clamping of straight shank tools in DIN 6499 collet chucks. It is suitable for high-speed cutting and high-precision milling applications, offering excellent flexibility and precision in operations.
Application:
-
Ideal for high-speed cutting and high-precision milling.
-
For clamping straight shank tools in DIN 6499 collet chucks.
High Flexibility:
-
Great clamping capability of up to –1 mm, offering flexibility and precision in your applications.

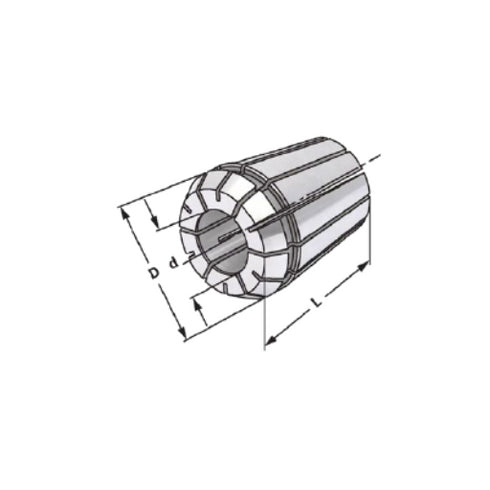

Dimension Explanation:
Size / d (mm) / D (mm) / L (mm)
| Name | Price | Quantity | Action |
|---|---|---|---|
| ER25 / 2-1.5mm / 26mm / 34mm | €46,10 | ||
| ER25 / 3-2mm / 26mm / 34mm | €42,74 | ||
| ER25 / 4-3mm / 26mm / 34mm | €42,74 | ||
| ER25 / 5-4mm / 26mm / 34mm | €42,74 | ||
| ER25 / 6-5mm / 26mm / 34mm | €42,74 | ||
| ER25 / 7-6mm / 26mm / 34mm | €42,74 | ||
| ER25 / 8-7mm / 26mm / 34mm | €42,74 | ||
| ER25 / 9-8mm / 26mm / 34mm | €42,74 | ||
| ER25 / 10-9mm / 26mm / 34mm | €42,74 | ||
| ER25 / 11-10mm / 26mm / 34mm | €42,74 | ||
| ER25 / 12-11mm / 26mm / 34mm | €42,74 | ||
| ER25 / 13-12mm / 26mm / 34mm | €42,74 | ||
| ER25 / 14-13mm / 26mm / 34mm | €42,74 | ||
| ER25 / 15-14mm / 26mm / 34mm | €42,74 | ||
| ER25 / 16-15mm / 26mm / 34mm | €42,74 |
