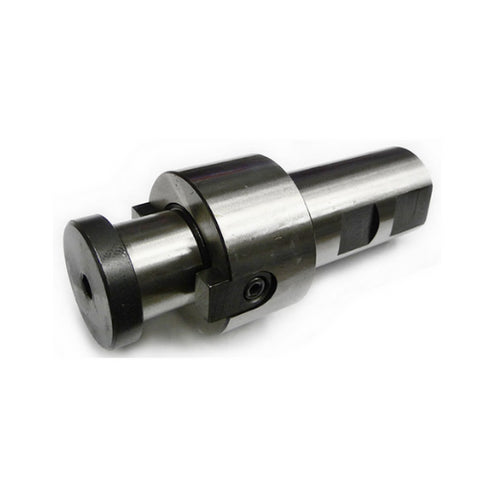

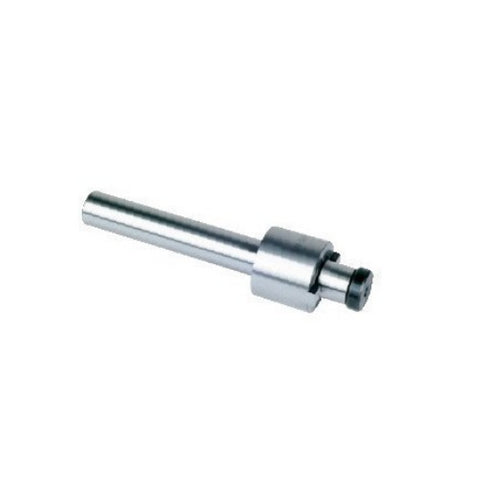

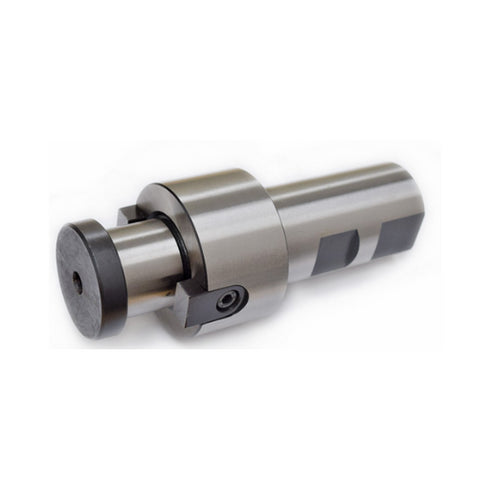

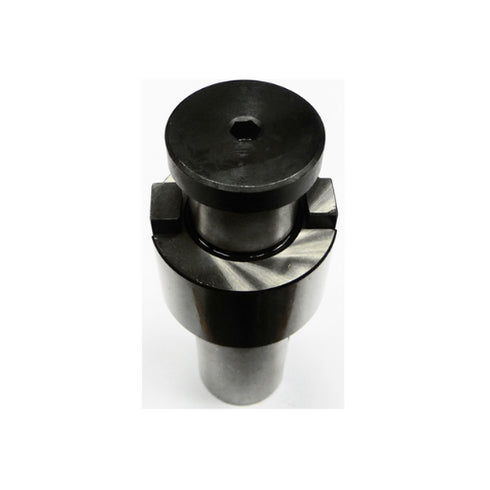

Milling Mandrel with Weldon Shank

The Milling Mandrel with Weldon Shank is designed for clamping cylindrical socket cutters with a transverse groove. The cutter is securely clamped using a screw mechanism, providing stability during machining.

Dimensions and Technical Features

• Shank Type: Weldon
• Clamping diameter for cutter: According to the selected variant
• Length of the clamping part for the milling cutter: According to the selected variant

Note

The mandrel is designed to fit cylindrical socket cutters with a transverse groove. The specific clamping diameter and length will depend on the selected variant.

Dimensions explanation: shank x axis
