Milling head EMP09 90°
SKU: EMP09040x43A16LN1202C
VENDOR: ZCC CT
Prices without VAT 24%
€340,90
Ø40mm / z8 / LNKT1206PNR / ❄️ - €340,90 EUR
Ø50mm / z12 / LNKT1206PNR / ❄️ - €415,90 EUR
Ø63mm / z20 / LNKT1206PNR / ❄️ - €1.041,90 EUR
Ø80mm / z25 / LNKT1206PNR / e53mm / ❄️ - €1.128,90 EUR
Ø80mm / z25 / LNKT1206PNR / e54.6mm / ❄️ - €1.128,90 EUR
Ø80mm / z35 / LNKT1206PNR / ❄️ - €1.420,50 EUR
MESSAGE
DESCRIPTION
Click here for TECHNICAL FEATURES

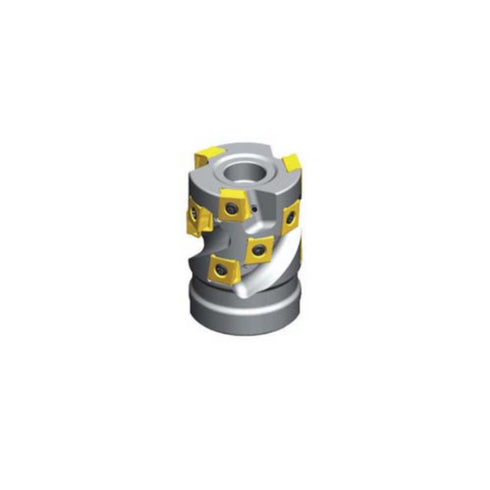

Milling head EMP09 90° for the insert LNKT with a diameter range of Ø40 – 125mm.
Sharp cutting edge geometry combined with robust tangential inserts. First choice for large cutting depths with high feed rates.

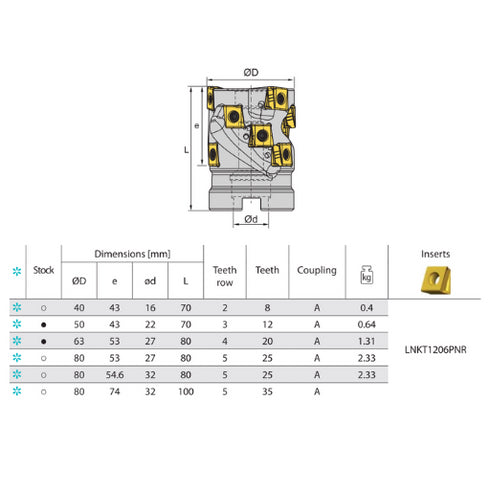

Dimensional explanation: ØD / Teeth / Insert/ Coolant Symbol
A key to change the insert is provided with the goods.
Insert is not part of the package, it can be purchased separately.
Name | Price | Quantity | Action |
---|---|---|---|
Ø40mm / z8 / LNKT1206PNR / ❄️ | €340,90 | ||
Ø50mm / z12 / LNKT1206PNR / ❄️ | €415,90 | ||
Ø63mm / z20 / LNKT1206PNR / ❄️ | €1.041,90 | ||
Ø80mm / z25 / LNKT1206PNR / e53mm / ❄️ | €1.128,90 | ||
Ø80mm / z25 / LNKT1206PNR / e54.6mm / ❄️ | €1.128,90 | ||
Ø80mm / z35 / LNKT1206PNR / ❄️ | €1.420,50 |
