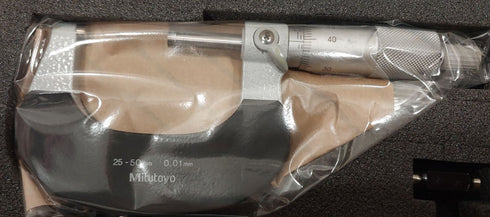

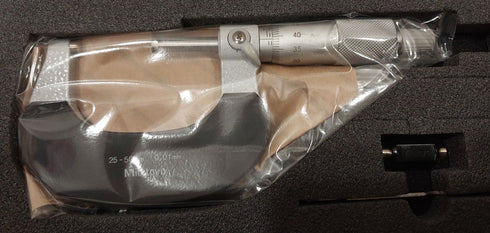

Outside Micrometers 25-50mm - Series 102, Mitutoyo
SKU: ΟΜ-2550
VENDOR: INSIZE
Prices without VAT 24%
€119,00€71,39
You Save: €47,61 (41%)
DESCRIPTION
The Outside Micrometers - Series 102 by Mitutoyo are precision measuring instruments designed for measuring external dimensions with high accuracy. Below are the key details about this model:
Heat-Insulated Frame:
The frame is heat-insulated to reduce the effects of temperature changes, ensuring stable measurements.
Slim Design:
The anvil side is tapered, allowing access to hard-to-reach areas during measurement.
Standard Bar:
Includes a reference bar (standard bar) for calibration, except for the 0-25 mm model.
Constant Measuring Force:
Equipped with a ratchet stop mechanism to ensure consistent measuring force, reducing operator-induced variations.

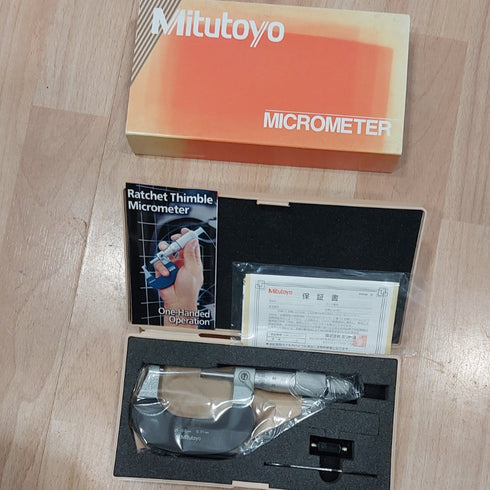

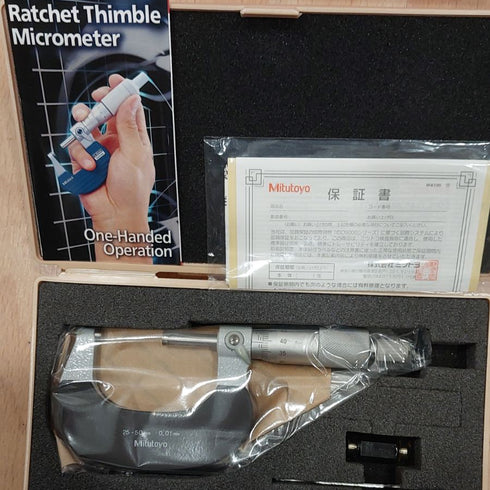

Protective Case:
Supplied in a precision plastic case for safe storage and transportation.
Specifications:
Graduation:
Accuracy: 0.01 mm, ensuring detailed and precise measurements.
Flatness:
Guaranteed at 0.3 µm, providing smooth measuring surfaces.
Tolerances:
1 µm for the 25 mm model.
3 µm for models with a range up to 100 mm.
Measuring Faces:
Measuring surfaces are carbide-tipped for maximum wear resistance and exceptional durability.
Applications:
Ideal for precision measurements in industries, machine shops, and for quality control of components.
Suitable for use on metals, high-precision parts, and scientific measurements.
The Mitutoyo Series 102 is known for its reliability, long-lasting performance, and resistance to challenging working conditions. It is a tool that meets the precision demands of professionals.
