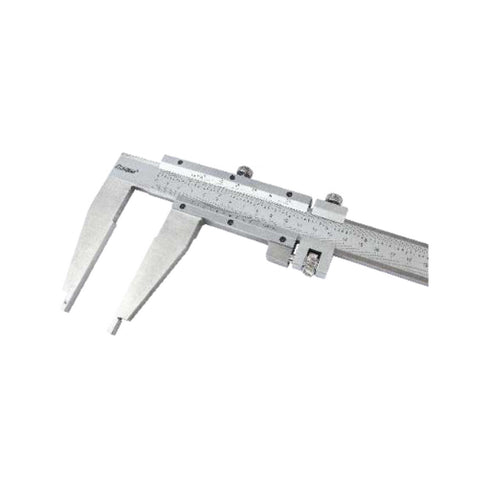

Vernier Caliper with O.D. & I.D. Jaws – with fine adjustment, DASQUA
SKU: 1320-0004
VENDOR: DASQUA
Prices without VAT 24%
High-precision Vernier caliper designed for outside (O.D.) and inside (I.D.) measurements. Features fine adjustment for accurate positioning, along with hardened, ground jaws and precision lapped measuring faces. The satin chrome finish ensures excellent readability, while the hardened stainless steel construction provides long service life. Distinct etched lines and figures stand out clearly against the satin chrome surface.
Features:
-
Type: Vernier (analog)
-
Measurements: Outside & Inside (O.D. / I.D.)
-
Fine adjustment for precise control
-
Jaws: Hardened & ground
-
Measuring faces: Precision lapped
-
Material: Hardened stainless steel
-
Finish: Satin chrome for clear visibility

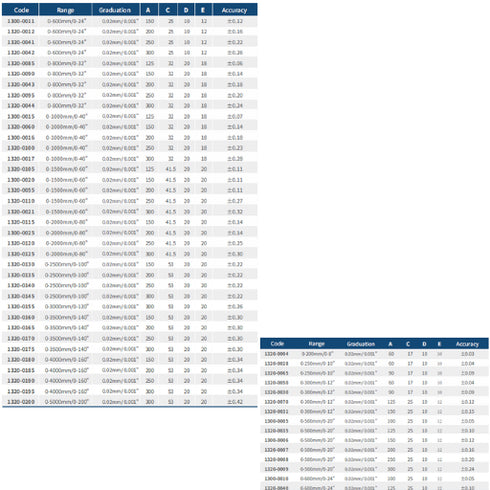

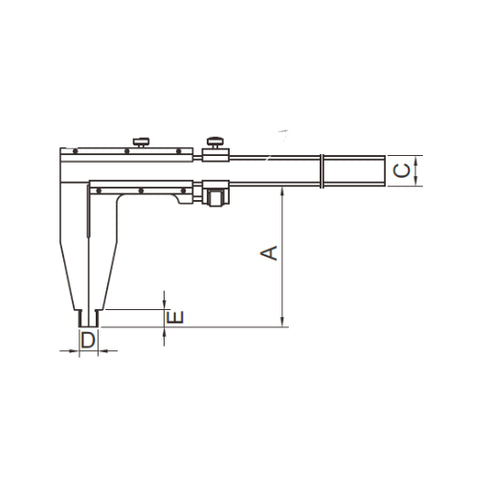

Dimensional explanation: Range / Accuracy / A
| Name | Price | Quantity | Action |
|---|---|---|---|
| 0 - 200mm / ±0.03 | €56,39 | ||
| 0 - 250mm / ±0.04 | €64,86 | ||
| 0 - 250mm / ±0.09 | €78,98 | ||
| 0 - 300mm / ±0.04 | €70,51 | ||
| 0 - 300mm / ±0.09 | €95,91 | ||
| 0 - 300mm / ±0.12 | €118,49 | ||
| 0 - 300mm / ±0.15 | €155,19 | ||
| 0 - 500mm / ±0.05 | €104,38 | ||
| 0 - 500mm / ±0.10 | €141,08 | ||
| 0 - 500mm / ±0.12 | €155,19 | ||
| 0 - 500mm / ±0.16 | €217,29 | ||
| 0 - 600mm / ±0.05 | €110,03 | ||
| 0 - 600mm / ±0.10 | €149,54 | ||
| 0 - 600mm / ±0.12 | €166,48 | ||
| 0 - 600mm / ±0.16 | €253,98 | ||
| 0 - 800mm / ±0.06 | €268,10 | ||
| 0 - 800mm / ±0.14 | €381,01 | ||
| 0 - 800mm / ±0.18 | €479,80 | ||
| 0 - 1000mm / ±0.07 | €296,33 | ||
| 0 - 1000mm / ±0.14 | €423,35 | ||
| 0 - 1000mm / ±0.18 | €508,03 | ||
| 0 - 1500mm / ±0.11 / 150mm | €790,30 | ||
| 0 - 1500mmm / ±0.11 / 200mm | €790,30 | ||
| 0 - 1500mmmm / ±0.27 | €945,55 | ||
| 0 - 1500mmm / ±0.32 | €1.129,03 | ||
| 0 - 2000mm / ±0.14 / 200mm | €903,21 | ||
| 0 - 2000mm / ±0.25 | €1.044,35 | ||
| 0 - 2000mm / ±0.30 | €1.213,71 | ||
| 0 - 2500mm / ±0.22 / 300mm | €3.104,94 | ||
| 0 - 3000mm / ±0.26 | €3.525,58 | ||
| 0 - 3500mm / ±0.30 / 300mm | €4.516,30 | ||
| 0 - 4000mm / ±0.34 / 300mm | €6.066,04 | ||
| 0 - 5000mm / ±0.42 | €7.053,99 |
