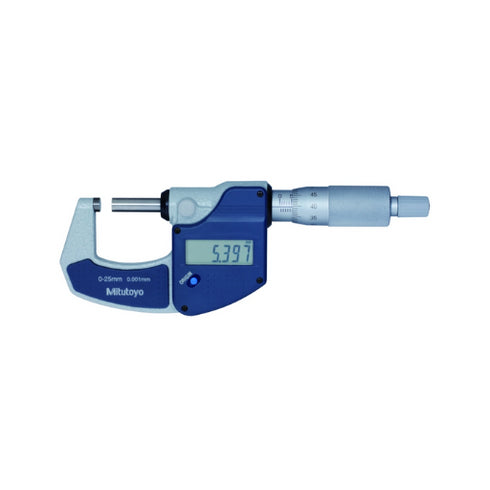

Digital Outside Micrometer 0-25mm, MITUTOYO

A Mitutoyo basic, cost-effective digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

• Model: MDC-25SX
• Digital/Analog: Digital
• Delivered: Including box, spanner, SR44 battery, certificate of inspection
• Inch-Metric: Metric
• Range: 0 - 25 mm
• Digital Step: 0.001 mm
• Max. Permissible Error J MPE: ±2 µm
• Flatness: 0.3 µm
• Parallelism: 1 µm
• Display: LCD, character height 7.5 mm
• Measuring Face: Carbide-tipped, micro-lap finish
• Measuring Spindle: ø6.35 mm, spindle pitch 0.5 mm
• Scale: Thimble and sleeve satin chrome finish, ø18 mm
• Measuring Force: 5 - 10 N
• Power Supply: 1 battery SR-44
• Battery Life: Approx. 2.4 years
• Origin: Yes
• Auto Power OFF after 20 min. non-use: Yes
• Low Voltage Alarm: Yes
• Function Lock: Yes
• Mass: 275 g
