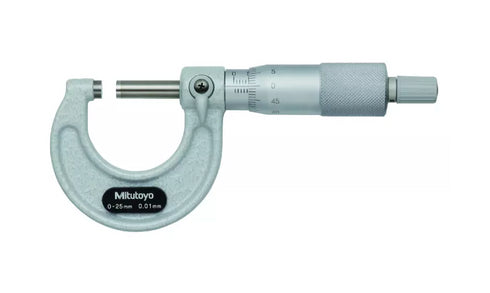

External Micrometer 0-100mm, MITUTOYO

The MITUTOYO external micrometer is a basic, cost-effective, non-digital micrometer with a ratchet stop to ensure accurate and repeatable measurements. Ideal for precise measurements on metals and other materials.

Features:

• Digital/Analog: Analog
• Delivered: Includes box, key, certificate of inspection
• Inch-Metric: Metric
• Range: 0-100 mm
• Graduation: 0.01 mm
• Max. Permissible Error (J MPE): ±2 µm
• Flatness: 0.6 µm
• Parallelism: 2 µm
• Measuring Face: Carbide-tipped, micro-lap finish
• Measuring Spindle: With spindle lock, ø6.35 mm (≤300 mm), ø8 mm (>300 mm), spindle pitch 0.5 mm
• Scale: Thimble and sleeve satin chrome finish, ø18 mm
• Measuring Force: 5 - 10 N
• Mass: 175 g
