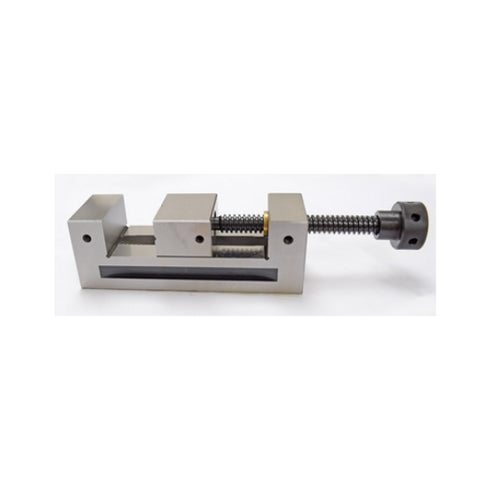

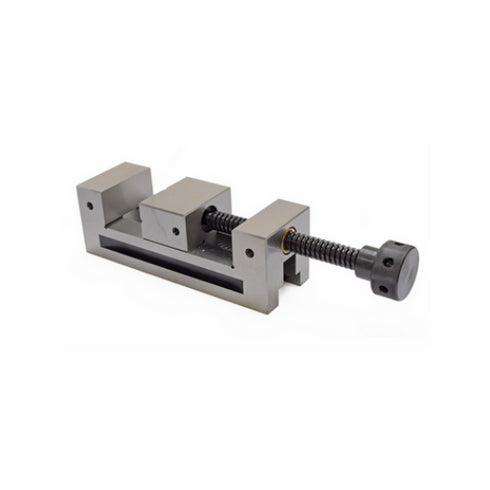

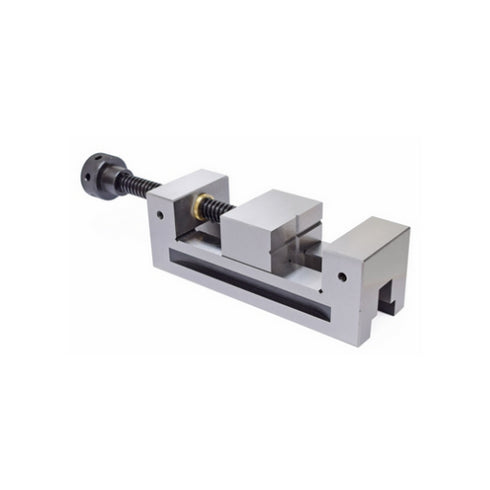

Precision Milling Type QG

The QG Precision Vise is a high-precision tool designed for demanding grinding and inspection applications. Equipped with a prism and guide screw, it provides accurate guidance and increased stability during processing.

Features

• Jaw Width: According to the selected variant (see detailed dimensions in the attached catalog).
• Other Dimensions: See the attached catalog sheet or product description for individual variants.
• Precise guidance, slotted prism, bronze nut at the trapezoidal screw.
• Flatness: 0.005 / 100mm.
• Perpendicularity of clamping surfaces: 0.005mm.
• Hardened and ground jaws with hardness HRC 58-62 for durability and precision.
• Constructed from alloy tool steel for enhanced lifespan.

Applications

• Horizontal and vertical grinding
• Grinding and Inspection
• Serial and piece production on NC milling machines and machining centers.

Clamping System

The vise provides precise guidance for clamping components, ensuring stability and accuracy during processing.

Note: For detailed dimensions and specifications, please refer to the attached catalog sheet or product description.

Upgrade your processes with the QG Precision Vise, combining precision, durability, and versatility for a wide range of applications.

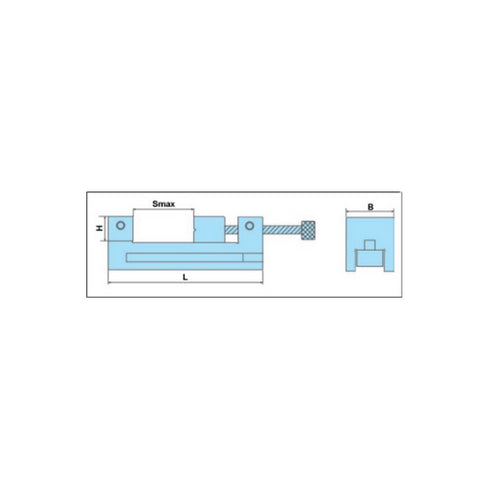

Explanation of dimensions: B / Smax  (mm)
