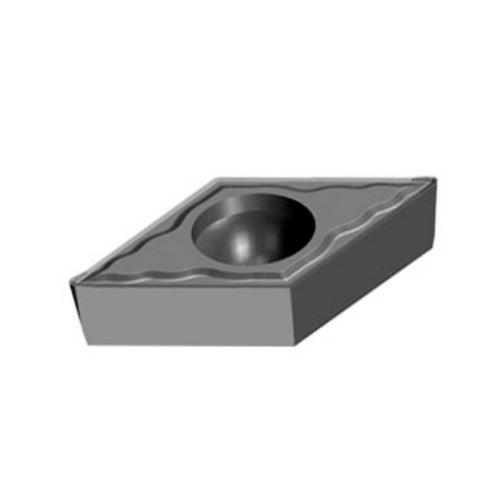

Insert DCMT 070204-EM, ZCC CT

Turning insert with r0.4 cutting edge and high-quality coating, designed for superior performance in a wide range of machining applications.

EM - Chip Breaker:
Double-sided chip breaker with a sharp cutting edge and large rake angle, ideal for machining various materials, including stainless steel, with excellent finishing capabilities.

Material Grades:

• YBG205 - General-purpose quality:
  PVD-coated carbide grade for finishing and medium machining of stainless steel, super alloys, and steel. Provides excellent wear resistance and thermal stability.

  • P10 – P30
  • M20 – M40
  • S15 – S25

• YBM153 - Stainless steel quality:
  CVD-coated carbide grade for finishing and medium machining of stainless steel. Offers high wear resistance and resistance to plastic deformation at higher cutting speeds.

  • M10 – M25

• YBM253 - Stainless steel quality:
  CVD-coated carbide grade for medium to heavy machining operations in stainless steel, with a wide range of applications. Offers excellent wear resistance and resistance to plastic deformation at higher cutting speeds.

  • M15 – M35
