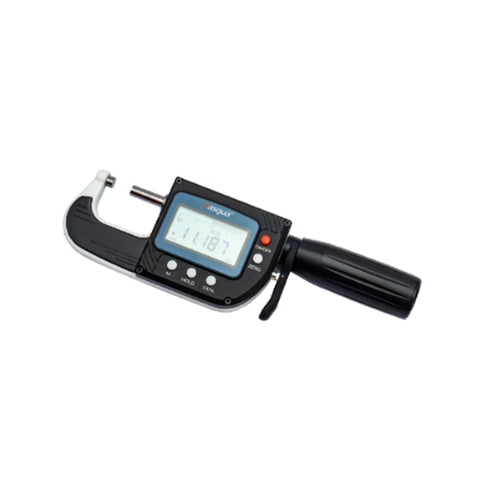

High Precision Digital Micrometer / Snap Gauge, DASQUA

High-precision digital micrometer / snap gauge by DASQUA, purpose-built for fast, accurate, and repeatable inspection of mass-produced workpieces. Equipped with an ergonomic fork mechanism that retracts the spindle by 3mm at a single press, allowing rapid insertion of parts. Features an Absolute encoder system that retains origin settings even after powering off, alongside switchable resolution (0.001mm / 0.01mm).

Designed with a high-speed spindle feed (5mm per sleeve revolution) running on ultra-durable linear ball bearings tested for over 10 million cycles. Built with solid carbide-tipped measuring faces (spindle & anvil) for extreme wear resistance.

Comprehensive Button & Digital Functions:

• Data output, Data Hold, and Data Preset

• Upper/Lower Tolerance limits & measuring direction toggle

• Max / Min / TIR (Total Indicator Reading) modes

• mm/inch conversion, Zero-set, Resolution selection, and Auto Power-off

• Supplied with calibration setting block (except for 0-25mm / 0-1" models).

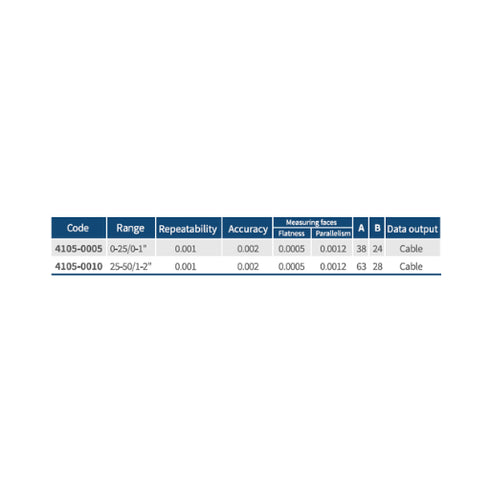

Dimensions: Range (mm)
