Milling head QCH WPGT
SKU: QCH-20-WPGT05-M10-02
VENDOR: ZCC CT
Prices without VAT 24%
€121,50
DESCRIPTION

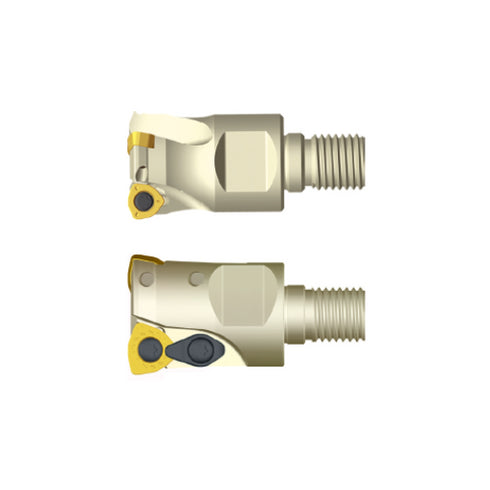

The Milling Head QCH WPGT is designed for WPGT inserts and is available in diameters ranging from Ø16 to 42mm.
- Suitable for steel, stainless steel, and cast iron
- Inserts with three cutting edges
- Tilt capability and dual clamping system for inserts

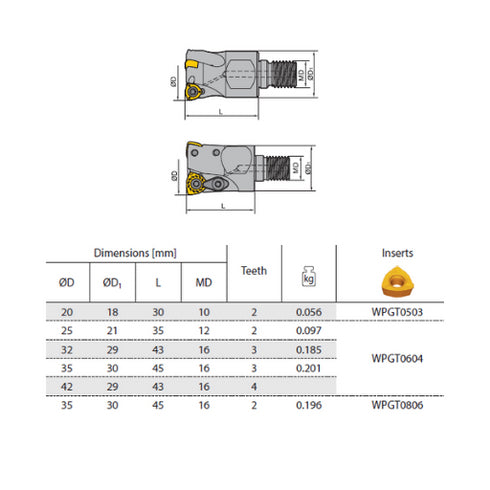

Dimensions Explanation:
ØD / Teeth / Insert / Cooling Symbol
Package Includes:
- A key for replacing the insert
Note: The insert is not included in the package and can be purchased separately.
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Ø20mm / z2 / WPGT0503 | €121,50 | ||
| Ø25mm / z2 / WPGT0604 | €127,50 | ||
| Ø32mm / z3 / WPGT0604 | €142,50 | ||
| Ø35mm / z3 / WPGT0604 | €142,50 | ||
| Ø42mm / z4 / WPGT0604 | €145,00 | ||
| Ø35mm / z2 / WPGT0806 | €120,00 |
