Hand tap set (M1-M56) HSS-G DIN352
SKU:
VENDOR: SAPHIR
Prices without VAT 24%
€33,10
DESCRIPTION
Hand taps sets (from M60 until M68)HSS-G DIN352, set of three taps and also separately pieces of set.

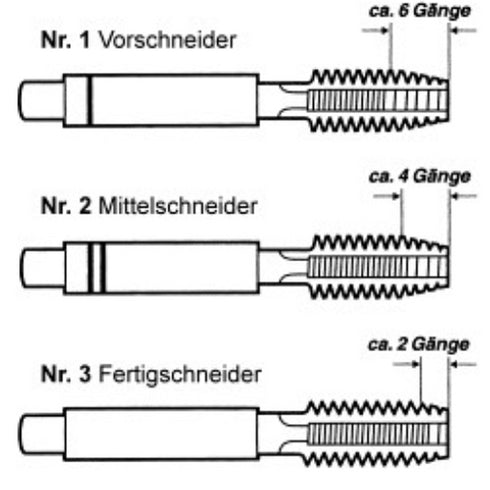

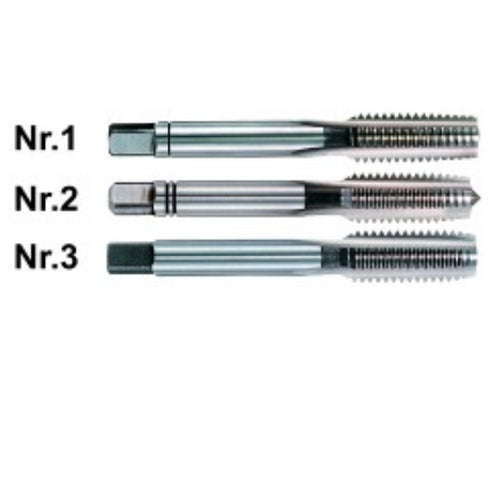

Hand taps in a three-piece set with metric threads are tools used to create or improve internal threads (in holes). The set consists of three different taps, each with a specific purpose and cutting stage.
Composition of the Set:
First Tap (Taper Tap):
Also called the "initial cutting tap."
Features a pronounced taper on the first threads for easy thread starting.
Used for the initial pass, forming the base of the thread.
Second Tap (Intermediate or Plug Tap):
Used in the second cutting stage.
Deepens and extends the thread started by the first tap.
Has a less pronounced taper compared to the first.
Third Tap (Bottoming Tap):
Called the "finishing tap."
Extends the thread to the full depth of the hole and completes its geometry.
Almost fully threaded, making it suitable for blind holes (holes without an exit).
Advantages:
Gradual Cutting:
The work is done in three stages, ensuring precision and reducing the likelihood of breakage or excessive pressure.
Ease of Use:
Suitable even for beginners due to the step-by-step process.
Versatility:
Ideal for through-holes or blind holes.
Precision:
Produces high-quality threads that meet specifications.
| Name | Price | Quantity | Action |
|---|---|---|---|
| M1 - set | €33,10 | ||
| M1.1 - set | €49,40 | ||
| M1.4 - set | €41,60 | ||
| M1.2 - set | €33,10 | ||
| M1.6 - set | €33,10 | ||
| M1.7 - set | €33,10 | ||
| M1.8 - set | €49,40 | ||
| M2 - set | €17,10 | ||
| M2.2 - set | €15,80 | ||
| M2.3 - set | €15,80 | ||
| M2.5 - set | €17,10 | ||
| M2.6 - set | €17,10 | ||
| M3 - set | €9,90 | ||
| M3.5 - set | €18,90 | ||
| M4 - set | €9,90 | ||
| M4.5 - set | €19,10 | ||
| M5 - set | €10,70 | ||
| M5.5 - set | €23,90 | ||
| M6 - set | €10,70 | ||
| M7 - set | €17,50 | ||
| M8 - set | €11,90 | ||
| M9 - set | €22,30 | ||
| M10 - set | €15,40 | ||
| M11 - set | €43,90 | ||
| M11 - no.1 | €9,80 | ||
| M11 - no.2 | €9,80 | ||
| M11 - no.3 | €9,80 | ||
| M12 - set | €20,80 | ||
| M12 - no.1 | €7,00 | ||
| M12 - no.2 | €7,00 | ||
| M12 - no.3 | €7,00 | ||
| M14 - set | €27,20 | ||
| M14 - no.1 | €9,10 | ||
| M14 - no.2 | €9,10 | ||
| M14 - no.3 | €9,10 | ||
| M15 - set | €51,30 | ||
| M15 - no.1 | €17,10 | ||
| M15 - no.2 | €17,10 | ||
| M15 - no.3 | €17,10 | ||
| M16 - set | €30,80 | ||
| M16 - no.1 | €10,30 | ||
| M16 - no.2 | €10,30 | ||
| M16 - no.3 | €11,60 | ||
| M18 - set | €34,80 | ||
| M18 - no.1 | €11,60 | ||
| M18 - no.2 | €11,60 | ||
| M18 - no.3 | €11,60 | ||
| M20 - set | €45,90 | ||
| M20 - no.1 | €15,30 | ||
| M20 - no.2 | €15,30 | ||
| M20 - no.3 | €15,30 | ||
| M22 - set | €46,00 | ||
| M22 - no.1 | €15,30 | ||
| M22 - no.2 | €15,30 | ||
| M22 - no.3 | €15,30 | ||
| M24 - set | €66,90 | ||
| M24 - no.1 | €22,30 | ||
| M24 - no.2 | €22,30 | ||
| M24 - no.3 | €22,30 | ||
| M27 - set | €71,80 | ||
| M27 - no.1 | €23,90 | ||
| M27 - no.2 | €23,90 | ||
| M27 - no.3 | €23,90 | ||
| M30 - set | €142,80 | ||
| M30 - no.1 | €47,60 | ||
| M30 - no.2 | €47,60 | ||
| M30 - no.3 | €47,60 | ||
| M33 - set | €205,30 | ||
| M33 - no.1 | €68,40 | ||
| M33 - no.2 | €68,40 | ||
| M33 - no.3 | €68,40 | ||
| M36 - set | €246,30 | ||
| M36 - no.1 | €82,10 | ||
| M36 - no.2 | €82,10 | ||
| M36 - no.3 | €82,10 | ||
| M39 - set | €325,80 | ||
| M39 - no.1 | €97,70 | ||
| M39 - no.2 | €97,70 | ||
| M39 - no.3 | €97,70 | ||
| M42 - set | €338,70 | ||
| M42 - no.1 | €112,90 | ||
| M42 - no.2 | €112,90 | ||
| M42 - no.3 | €112,90 | ||
| M48 - set | €461,90 | ||
| M48 - no.1 | €153,90 | ||
| M48 - no.2 | €153,90 | ||
| M48 - no.3 | €153,90 | ||
| M52 - set | €566,90 | ||
| M52 - no.1 | €179,20 | ||
| M52 - no.2 | €179,20 | ||
| M52 - no.3 | €179,20 | ||
| M56 - set | €872,50 | ||
| M56 - no.1 | €290,80 | ||
| M56 - no.2 | €290,80 | ||
| M56 - no.3 | €290,80 |
