Face milling FMR04 RD**
SKU: FMR04050A22RD1203
VENDOR: ZCC CT
Prices without VAT 24%
€166,85
DESCRIPTION
The FMR04 face milling cutter is designed for the RD** insert with a diameter range of Ø50 – 200mm. It is suitable for machining steel, stainless steel, and carbon steel, and is primarily used in the mold-making industry.
Features
- Materials of Application: Suitable for steel, stainless steel, and carbon steel.
- Insert RD: Ideal for high-performance cutting applications.
- Dimensions Explanation:
- ØD: Cutter diameter.
- Teeth: Number of cutting edges.
- Insert: Type of insert.
- Cooling Symbol: Indications for cooling requirements.
Included in the Packaging
- A key for insert replacement.
Note
The insert is not included in the packaging and can be purchased separately.

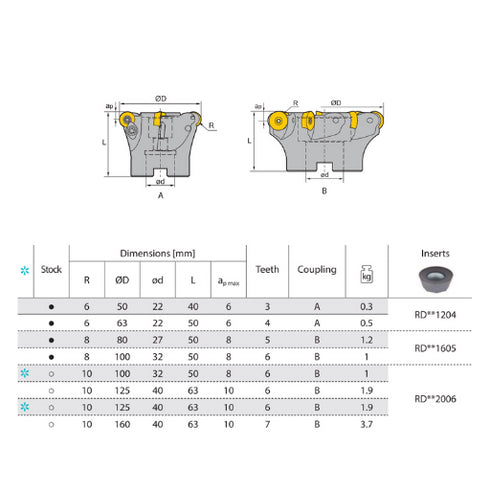

Dimensional explanation: ØD / Teeth / Insert / Coolant Symbol
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Ø50mm / z3 / RD**1204 | €166,85 | ||
| Ø63mm / z4 / RD**1204 | €225,23 | ||
| Ø80mm / z5 / RD**1605 | €263,55 | ||
| Ø100mm / z6 / RD**1605 | €291,38 | ||
| Ø100mm / z6 / RD**2006 / ❄️ | €325,40 | ||
| Ø125mm / z6 / RD**2006 | €372,23 | ||
| Ø125mm / z6 / RD**2006 / ❄️ | €403,73 | ||
| Ø160mm / z7 / RD**2006 | €429,45 |
