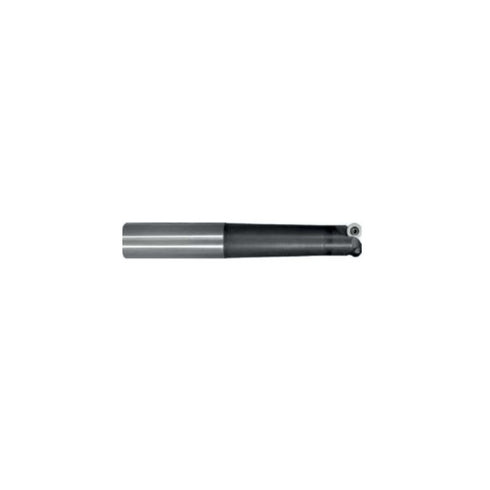

Face milling FMR03 RDKW
SKU: FMR03015G16XSRD070202
VENDOR: ZCC CT
Prices without VAT 24%
€79,70
DESCRIPTION
The Face Milling Cutter FMR03 is designed for the RDKW insert with a diameter range of Ø15 – 50mm. It is suitable for machining steel, stainless steel, and alloyed steels, and is especially used in the mold-making industry.
Features
- Materials for Application: Suitable for steel, stainless steel, and alloyed steels.
- Insert RDKW: Ideal for high-performance cutting applications.
- Dimension Explanation:
- ØD: Cutter diameter.
- L: Length.
- Teeth: Number of cutting edges.
- Insert: Type of insert.
- Cooling Symbol: Indicates cooling requirements.
Included in the Packaging
- A key for changing the insert.
Note
The insert is not included in the package and can be purchased separately.

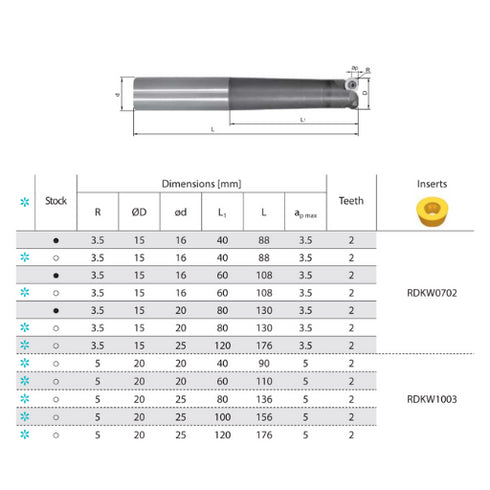

Dimensional explanation: ØD / L / Teeth / Insert / Coolant Symbol
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Ø15mm / 88mm / z2 / RDKW0702 | €79,70 | ||
| Ø15mm / 88mm/ z2 / RDKW0702 / ❄️ | €107,00 | ||
| Ø15mm / 108mm / z2 / RDKW0702 | €81,80 | ||
| Ø15mm / 108mm/ z2 / RDKW0702 / ❄️ | €107,63 | ||
| Ø15mm / 130mm / z2 / RDKW0702 | €87,15 | ||
| Ø15mm / 130mm/ z2 / RDKW0702 / ❄️ | €112,88 | ||
| Ø15mm / 176mm / z2 / RDKW0702 / ❄️ | €143,75 | ||
| Ø20mm / 90mm / z2 / RDKW1003 / ❄️ | €110,78 | ||
| Ø20mm / 110mm / z2 / RDKW1003 / ❄️ | €116,03 | ||
| Ø20mm / 136mm / z2 / RDKW1003 / ❄️ | €120,65 | ||
| Ø20mm / 156mm / z2 / RDKW1003 / ❄️ | €128,63 | ||
| Ø20mm / 176mm / z2 / RDKW1003 / ❄️ | €143,33 |
