Face milling FMR03 RD**
SKU: FMR03016XP16RD0802
VENDOR: ZCC CT
Prices without VAT 24%
€86,63
DESCRIPTION

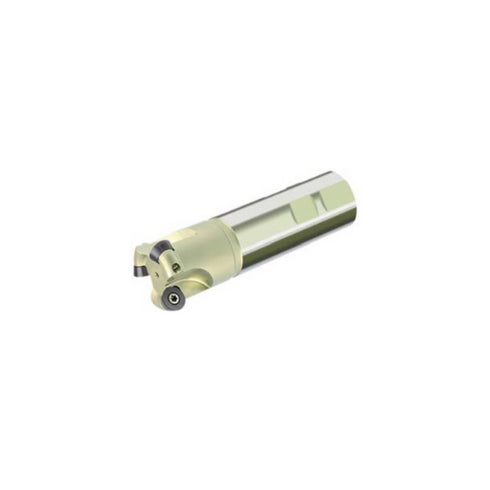

The Face Milling Cutter FMR03 is suitable for the RD** insert with a diameter range of Ø15 – 50mm. It is ideal for machining steel, stainless steel, and alloyed steels, and is primarily used in the mold-making industry.
Features
- Materials for Application: Suitable for steel, stainless steel, and alloyed steels.
- Insert RD: Designed for high cutting performance.
- Dimension Explanation:
- ØD: Cutter diameter.
- Teeth: Number of cutting edges.
- Insert: Type of insert.
- Cooling Symbol: Indicates cooling requirements.
Included in the Packaging
- A key for changing the insert.
Note
The insert is not included in the package and can be purchased separately.

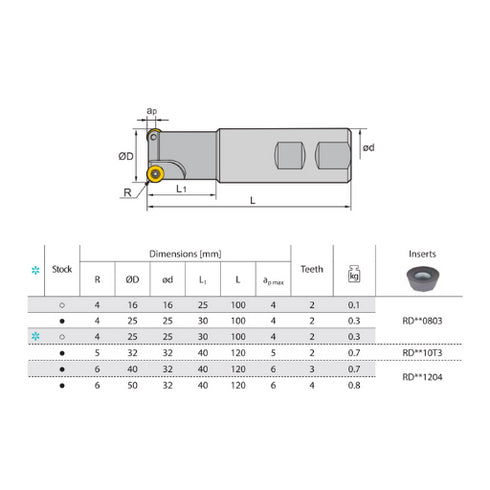

Dimensional explanation: ØD / Teeth / Insert / Coolant Symbol
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Ø16mm / z2 / RD**0803 | €86,63 | ||
| Ø25mm / z2 / RD**0803 | €86,63 | ||
| Ø25mm / z2 / RD**0803 / ❄️ | €111,20 | ||
| Ø32mm / z2 / RD**10T3 | €110,78 | ||
| Ø40mm / z3 / RD**1204 | €142,80 | ||
| Ø50mm / z4 / RD**1204 | €154,88 |
