Face milling FMD02 67°

SKU: FMD02080A27PN1110

VENDOR: ZCC CT

Prices without VAT 24%

€424,10

DESCRIPTION

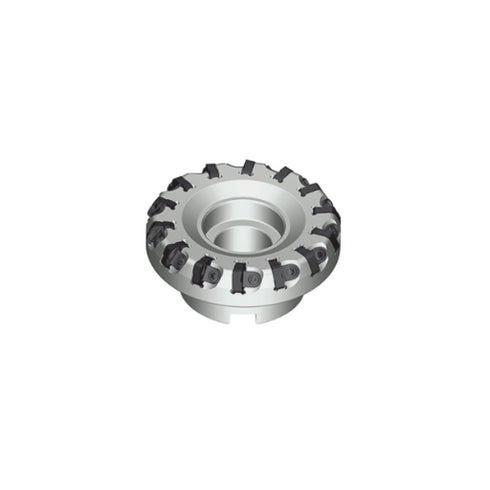

The Face Milling Cutter FMD02 67° is designed for the PNEG insert, with a diameter range from Ø50 to Ø315mm. It is suitable for applications on steel, stainless steel, and alloy steel, offering high performance and reliability.

Features

  • Application Material: Suitable for steel, stainless steel, and alloy steel.
  • PNEG Insert: Face inserts with 10 cutting edges.
  • Explanation of Dimensions:
    • ØD: Diameter of the milling cutter.
    • Teeth: Number of teeth.
    • Insert: Type of insert.
    • Cooling Symbol: Indications for cooling.

Included in the Package

  • A key for changing the insert.

Note
The insert is not included in the package and can be purchased separately.

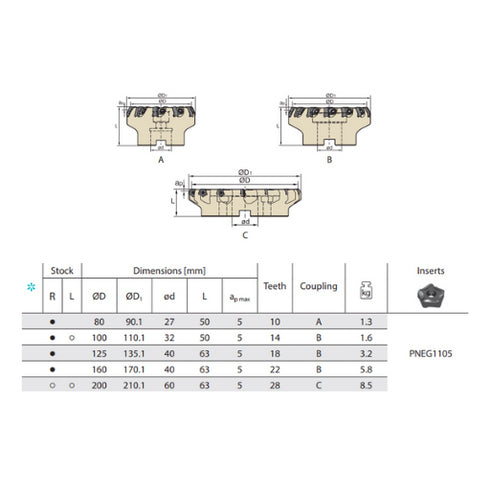

Dimensional explanation: ØD / Teeth / Insert/ Coolant Symbol

For detailed information and cutting conditions, download the PDF file here.



Name Price Quantity Action
Ø80mm / z10 / PNEG1105 €424,10
Ø100mm / z14 / PNEG1105 €690,38
Ø125mm / z18 / PNEG1105 €878,33
Ø160mm / z22 / PNEG1105 €1.131,38
Ø200mm / z28 / PNEG1105 €1.415,93
