Face milling FMD02 55°
SKU: FMD02080A27HN0908
VENDOR: ZCC CT
Prices without VAT 24%
€294,90
DESCRIPTION

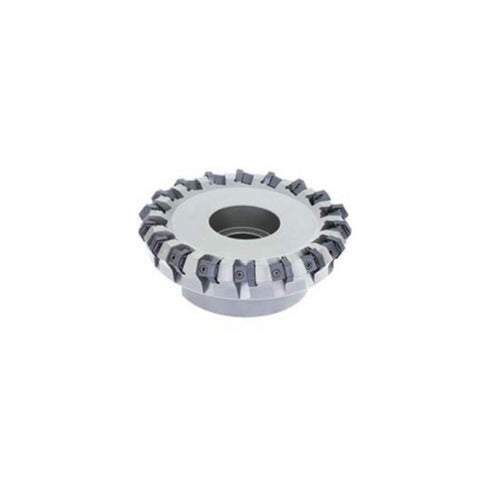

The Face Milling Cutter FMD02 55° is designed for the HNEX insert, with a diameter range from Ø80 to Ø315mm. It is suitable for applications in steel, for face inserts with 12 cutting edges, offering excellent performance and reliability.
Features
- Application Material: Suitable for steel.
- HNEX Insert: Face inserts with 12 cutting edges.
- Dimensions Explanation:
- ØD: Diameter of the milling cutter.
- Teeth: Number of teeth.
- Insert: Type of insert.
- Cooling Symbol: Cooling indications.
Included in the Package
- One key for insert replacement.
Note
The insert is not included in the package and can be purchased separately.

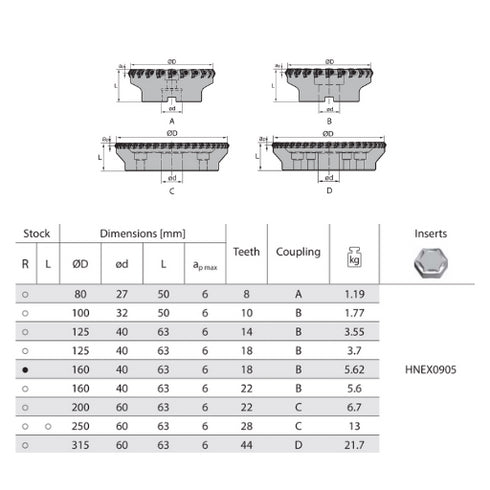

Dimensional explanation: ØD / Teeth / Insert/ Coolant Symbol
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Ø80mm / z8 / HNEX0905 | €294,90 | ||
| Ø100mm / z10 / HNEX0905 | €524,50 | ||
| Ø125mm / z14 / HNEX0905 | €604,90 | ||
| Ø125mm / z18 / HNEX0905 | €750,90 | ||
| Ø160mm / z18 / HNEX0905 | €801,50 | ||
| Ø160mm / z22 / HNEX0905 | €934,50 | ||
| Ø200mm / z22 / HNEX0905 | €1.077,50 | ||
| Ø250mm / z28 / HNEX0905 | €1.721,50 | ||
| Ø315mm / z44 / HNEX0905 | €2.962,50 |
