Face milling FMA12 45°
SKU: FMA12050A22ON0604C
VENDOR: ZCC CT
Prices without VAT 24%
€266,60
DESCRIPTION

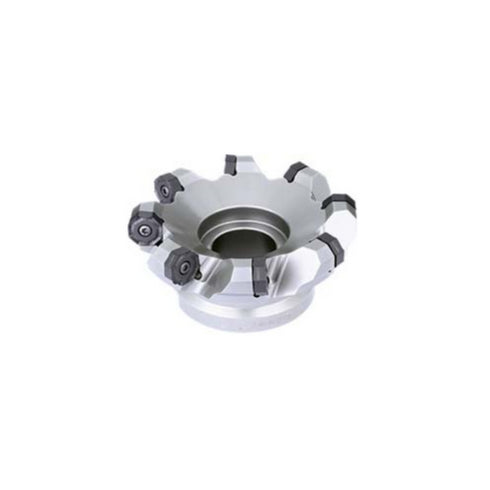

The Face Milling Cutter FMA12 45° is specially designed for ON*U inserts, with a diameter range from Ø63 to Ø315 mm. It is suitable for applications in steel and cast iron, delivering reliable performance.
Features
- Application Material: Suitable for steel and cast iron.
- ON*U Inserts: Inserts with 16 cutting edges.
- Dimensions Explanation:
- ØD: Diameter of the milling cutter.
- Teeth: Number of teeth.
- Insert: Type of insert.
- Cooling Symbol: Cooling indications.
Included in the Package
- A key for changing the insert.
Note
The insert is not included in the package and can be purchased separately.

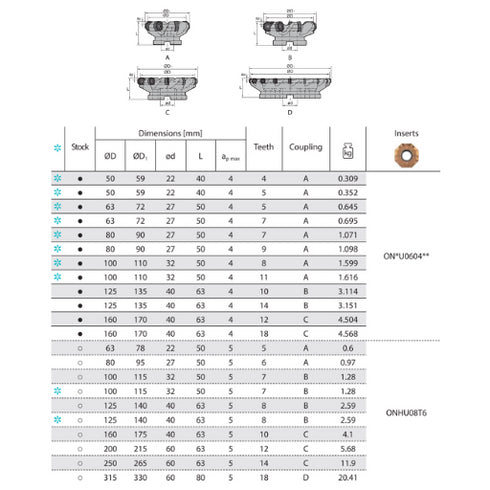

Dimensional explanation: ØD / Teeth / Insert/ Coolant Symbol
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Ø50mm / z4 / ON*U0604 / ❄️ | €266,60 | ||
| Ø50mm / z5 / ON*U0604 / ❄️ | €333,38 | ||
| Ø63mm / z5 / ON*U0604 / ❄️ | €333,38 | ||
| Ø63mm / z7 / ON*U0604 / ❄️ | €340,10 | ||
| Ø80mm / z7 / ON*U0604 / ❄️ | €404,78 | ||
| Ø80mm / z9 / ON*U0604 / ❄️ | €489,20 | ||
| Ø100mm / z8 / ON*U0604 / ❄️ | €489,20 | ||
| Ø100mm / z11 / ON*U0604 / ❄️ | €578,03 | ||
| Ø125mm / z10 / ON*U0604 | €560,18 | ||
| Ø125mm / z14 / ON*U0604 | €677,25 | ||
| Ø160mm / z12 / ON*U0604 | €709,28 | ||
| Ø160mm / z18 / ON*U0604 | €846,83 | ||
| Ø63mm / z5 / ONHU08T6 | €279,20 | ||
| Ø80mm / z6 / ONHU08T6 | €313,85 | ||
| Ø100mm / z7 / ONHU08T6 | €348,50 | ||
| Ø100mm / z7 / ONHU08T6 / ❄️ | €402,68 | ||
| Ø125mm / z8 / ONHU08T6 | €424,73 | ||
| Ø125mm / z8 / ONHU08T6 / ❄️ | €446,78 | ||
| Ø200mm / z12 / ONHU08T6 | €769,13 |
