Face milling FMA04 45°
SKU: FMA04125B40OF0708
VENDOR: ZCC CT
Prices without VAT 24%
€502,95
DESCRIPTION

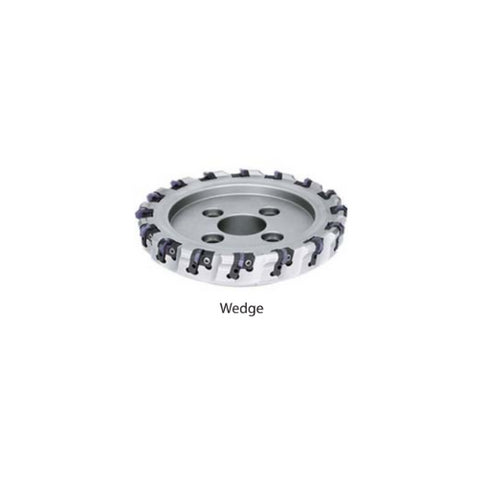

The Face Milling Head FMA04 45° OFKR is designed for the OFKR insert, offering high performance and reliability. Available in a diameter range of Ø125 to Ø315mm.
Features
- Application Material: Suitable for steel, stainless steel, cast iron, and non-ferrous metals.
- OFKR Insert: Inserts with 8 cutting edges.
- Dimension Explanation:
- ØD: Diameter of the milling head.
- Teeth: Number of teeth.
- Insert: Type of insert.
- Cooling Symbol: Cooling indications.
Included in the Package
- A key for changing the insert.
Note
The insert is not included in the package and can be purchased separately.

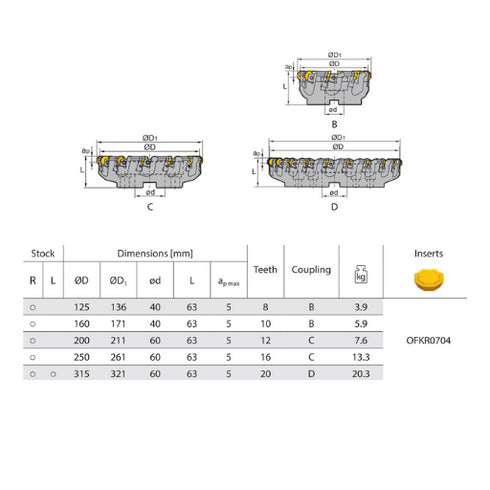

Dimensional explanation: ØD / Teeth / Insert/ Coolant Symbol
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Ø125mm / z8 / OFKR0704 | €502,95 | ||
| Ø160mm / z10 / OFKR0704 | €633,05 | ||
| Ø200mm / z12 / OFKR0704 | €827,40 | ||
| Ø250mm / z16 / OFKR0704 | €1.092,53 | ||
| Ø315mm / z20 / OFKR0704 | €1.533,95 |
