Endmill with two flutes 2F HSS coated
SKU: AG1220A-1
VENDOR: T-F
Prices without VAT 24%

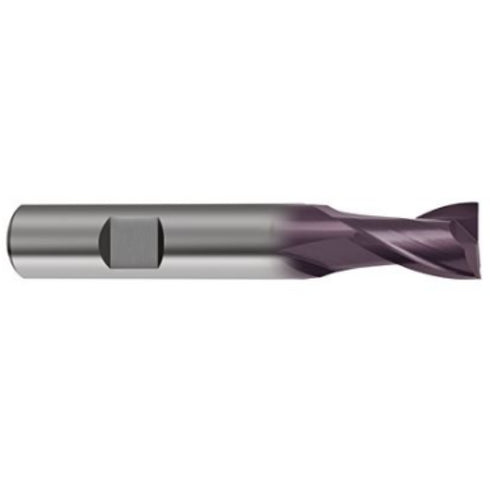

The two-flute (2F) HSS end mill with coating comes in a standard size and is equipped with a Weldon shank, providing enhanced stability and accuracy in machining. The coating offers excellent wear resistance and extends the tool life, making it ideal for demanding applications.
Features:
✔ Material: HSS (High-Speed Steel) with coating for exceptional wear resistance
✔ Two flutes (2F) for improved cutting performance and efficient chip removal
✔ Standard size for versatile use in a variety of machining tasks
✔ Weldon shank for enhanced stability and precision
✔ Ideal for demanding cutting applications
Application Categories:
- Suitable for general machining on various material types
- Ideal for applications requiring high wear resistance and precision

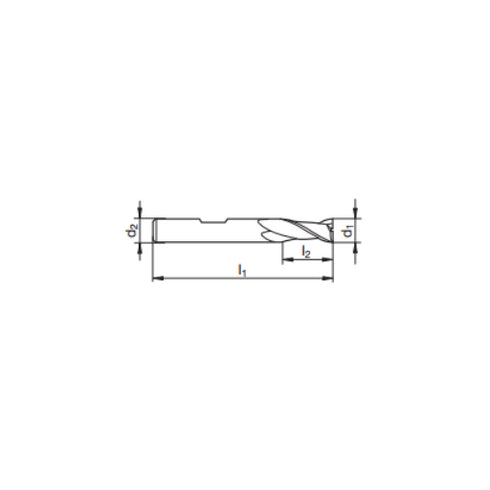

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ1 x 3 x 48 - 6mm | €14,88 | ||
| Φ1.5 x 3 x 48 - 6mm | €14,88 | ||
| Φ2 x 4 x 48 - 6mm | €13,63 | ||
| Φ2.5 x 5 x 49 - 6mm | €14,88 | ||
| Φ2.8 x 5 x 49 - 6mm | €16,40 | ||
| Φ3 x 5 x 49 - 6mm | €13,63 | ||
| Φ3.5 x 6 x 50 - 6mm | €14,88 | ||
| Φ3.8 x 7 x 51 - 6mm | €16,40 | ||
| Φ4 x 7 x 51 - 6mm | €13,63 | ||
| Φ4.5 x 8 x 52 - 6mm | €13,63 | ||
| Φ4.8 x 8 x 52 - 6mm | €16,40 | ||
| Φ5 x 8 x 52 - 6mm | €13,63 | ||
| Φ5.5 x 8 x 52 - 6mm | €14,88 | ||
| Φ5.75 x 8 x 52 - 6mm | €16,40 | ||
| Φ6 x 8 x 52 - 6mm | €13,63 | ||
| Φ6.5 x 10 x 54 - 8mm | €16,40 | ||
| Φ6.75 x 10 x 54 - 8mm | €17,10 | ||
| Φ7 x 10 x 54 - 8mm | €16,46 | ||
| Φ7.5 x 11 x 55 - 8mm | €16,40 | ||
| Φ7.75 x 11 x 55 - 8mm | €18,17 | ||
| Φ8 x 11 x 55 - 8mm | €15,76 | ||
| Φ8.5 x 11 x 61 - 10mm | €17,05 | ||
| Φ8.7 x 11 x 61 - 10mm | €19,07 | ||
| Φ9 x 11 x 61 - 10mm | €18,94 | ||
| Φ9.5 x 13 x 63 - 10mm | €20,96 | ||
| Φ9.7 x 13 x 63 - 10mm | €20,96 | ||
| Φ10 x 13 x 63 - 10mm | €17,16 | ||
| Φ10.5 x 13 x 70 - 12mm | €18,56 | ||
| Φ11 x 13 x 70 - 12mm | €21,17 | ||
| Φ11.7 x 16 x 73 - 12mm | €18,56 | ||
| Φ12 x 16 x 73 - 12mm | €19,20 | ||
| Φ13 x 16 x 73 - 12mm | €30,22 | ||
| Φ14 x 16 x 73 - 12mm | €24,81 | ||
| Φ15 x 19 x 79 - 16mm | €32,39 | ||
| Φ16 x 19 x 79 - 16mm | €35,36 | ||
| Φ17 x 19 x 79 - 16mm | €49,26 | ||
| Φ18 x 19 x 79 - 16mm | €30,22 | ||
| Φ19 x 22 x 88 - 20mm | €55,45 | ||
| Φ20 x 22 x 88 - 20mm | €38,91 | ||
| Φ21 x 22 x 88 - 20mm | €60,24 | ||
| Φ22 x 22 x 88 - 20mm | €63,13 | ||
| Φ24 x 26 x 102 - 25mm | €68,18 | ||
| Φ25 x 26 x 102 - 25mm | €68,18 | ||
| Φ26 x 26 x 102 - 25mm | €80,28 | ||
| Φ28 x 26 x 102 - 25mm | €84,11 | ||
| Φ30 x 26 x 102 - 25mm | €97,62 | ||
| Φ32 x 32 x 112 - 32mm | €102,11 | ||
| Φ36 x 32 x 112 - 32mm | €119,97 | ||
| Φ40 x 38 x 130 - 40mm | €137,74 |
