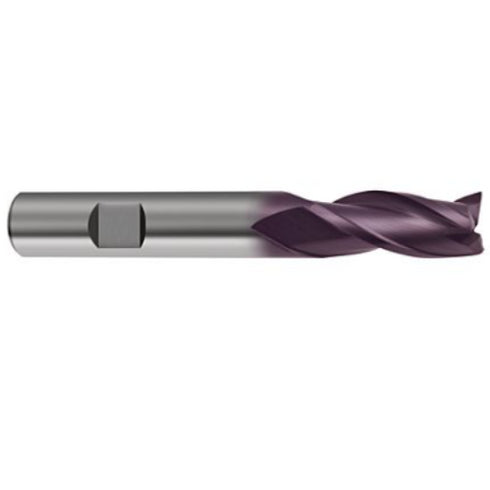

Endmill with three flutes 3F HSS coated
SKU: AG1320A-2
VENDOR: T-F
Prices without VAT 24%
€13,63
DESCRIPTION
The coated HSS three-flute (3F) end mill is designed for high-precision metal machining, providing enhanced wear resistance and extended tool life. Its special coating reduces friction and improves cutting performance. The weldon shank ensures secure clamping and stability during machining.
Features:
✔ Material: Coated High-Speed Steel (HSS)
✔ Three-flute (3F) design for smooth cutting and increased accuracy
✔ Weldon shank for secure clamping
✔ Suitable for demanding machining applications
Application Categories:
- Machining of steel and cast iron
- High-strength and hard materials

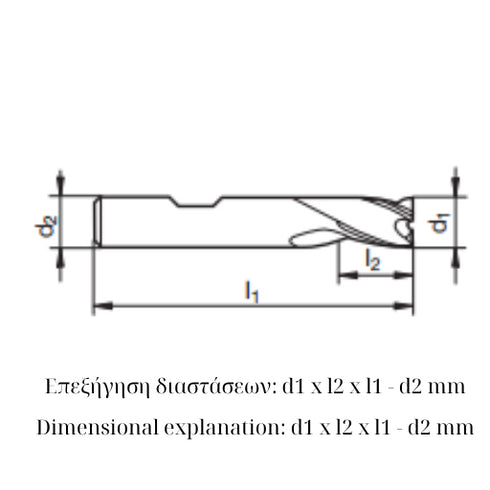

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ2 x 4 x 48 - 6mm | €13,63 | ||
| Φ2.5 x 5 x 49 - 6mm | €14,88 | ||
| Φ2.8 x 5 x 49 - 6mm | €16,40 | ||
| Φ3 x 5 x 49 - 6mm | €13,63 | ||
| Φ3.5 x 6 x 50 - 6mm | €14,88 | ||
| Φ3.8 x 7 x 51 - 6mm | €16,40 | ||
| Φ4 x 7 x 51 - 6mm | €13,63 | ||
| Φ4.5 x 8 x 52 - 6mm | €13,63 | ||
| Φ4.8 x 8 x 52 - 6mm | €16,40 | ||
| Φ5 x 8 x 52 - 6mm | €13,63 | ||
| Φ5.5 x 8 x 52 - 6mm | €14,88 | ||
| Φ5.75 x 8 x 52 - 6mm | €16,40 | ||
| Φ6 x 8 x 52 - 6mm | €13,63 | ||
| Φ6.5 x 10 x 54 - 8mm | €16,40 | ||
| Φ6.75 x 10 x 54 - 8mm | €17,10 | ||
| Φ7 x 10 x 54 - 8mm | €16,46 | ||
| Φ7.5 x 11 x 55 - 8mm | €16,40 | ||
| Φ7.75 x 11 x 55 - 8mm | €18,17 | ||
| Φ8 x 11 x 55 - 8mm | €15,76 | ||
| Φ8.5 x 11 x 61 - 10mm | €17,05 | ||
| Φ8.7 x 11 x 61 - 10mm | €19,07 | ||
| Φ9 x 11 x 61 - 10mm | €18,94 | ||
| Φ9.5 x 13 x 63 - 10mm | €20,96 | ||
| Φ9.7 x 13 x 63 - 10mm | €20,96 | ||
| Φ10 x 13 x 63 - 10mm | €17,16 | ||
| Φ11 x 13 x 70 - 12mm | €21,17 | ||
| Φ12 x 16 x 73 - 12mm | €19,20 | ||
| Φ13 x 16 x 73 - 12mm | €30,22 | ||
| Φ14 x 16 x 73 - 12mm | €24,81 | ||
| Φ15 x 19 x 79 - 16mm | €32,39 | ||
| Φ16 x 19 x 79 - 16mm | €35,36 | ||
| Φ17 x 19 x 79 - 16mm | €49,26 | ||
| Φ18 x 19 x 79 - 16mm | €30,22 | ||
| Φ19 x 22 x 88 - 20mm | €55,45 | ||
| Φ20 x 22 x 88 - 20mm | €38,91 | ||
| Φ21 x 22 x 88 - 20mm | €60,24 | ||
| Φ22 x 22 x 88 - 20mm | €63,13 | ||
| Φ24 x 26 x 102 - 25mm | €68,18 | ||
| Φ25 x 26 x 102 - 25mm | €68,18 | ||
| Φ26 x 26 x 102 - 25mm | €80,28 | ||
| Φ28 x 26 x 102 - 25mm | €84,11 | ||
| Φ30 x 26 x 102 - 25mm | €97,62 | ||
| Φ32 x 32 x 112 - 32mm | €102,11 | ||
| Φ36 x 32 x 112 - 32mm | €119,97 | ||
| Φ40 x 38 x 130 - 40mm | €137,74 |
