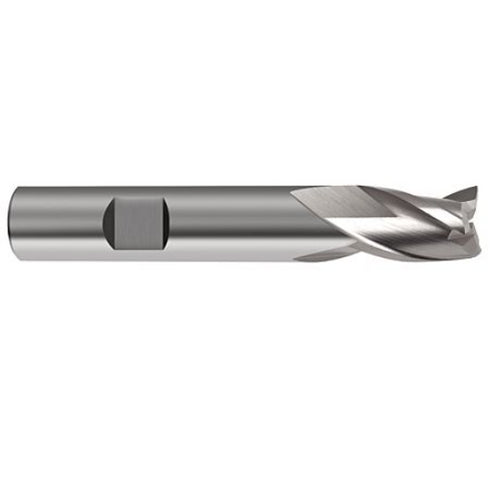

Endmill with three flutes 3F HSS
SKU: AG1320-2
VENDOR: T-F
Prices without VAT 24%
€6,67
DESCRIPTION
The HSS three-flute (3F) end mill is suitable for general-purpose metal machining, offering good cutting performance and wear resistance. Its three-flute design ensures smooth material removal, while the weldon shank provides secure clamping and stability during machining.
Features:
✔ Material: High-Speed Steel (HSS)
✔ Three-flute (3F) design for smooth and efficient cutting
✔ Weldon shank for secure clamping
✔ Suitable for general machining applications
Application Categories:
- Machining of steel and cast iron
- General metalworking applications

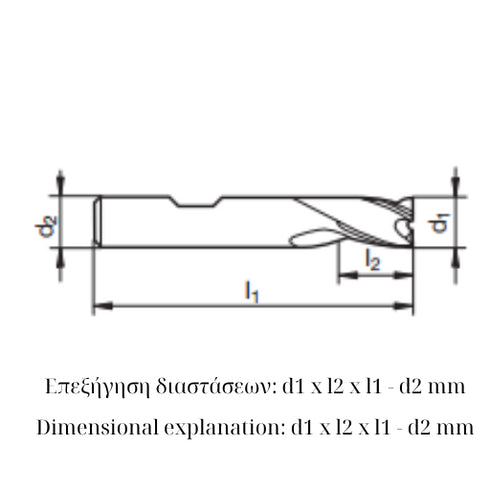

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ2 x 4 x 48 - 6mm | €6,67 | ||
| Φ2.5 x 5 x 49 - 6mm | €7,58 | ||
| Φ2.8 x 5 x 49 - 6mm | €8,34 | ||
| Φ3 x 5 x 49 - 6mm | €6,67 | ||
| Φ3.5 x 6 x 50 - 6mm | €7,58 | ||
| Φ3.8 x 7 x 51 - 6mm | €8,34 | ||
| Φ4 x 7 x 51 - 6mm | €6,67 | ||
| Φ4.5 x 8 x 52 - 6mm | €6,67 | ||
| Φ4.8 x 8 x 52 - 6mm | €8,34 | ||
| Φ5 x 8 x 52 - 6mm | €6,67 | ||
| Φ5.5 x 8 x 52 - 6mm | €7,58 | ||
| Φ5.75 x 8 x 52 - 6mm | €8,34 | ||
| Φ6 x 8 x 52 - 6mm | €6,67 | ||
| Φ6.5 x 10 x 54 - 8mm | €7,77 | ||
| Φ6.75 x 10 x 54 - 8mm | €9,11 | ||
| Φ7 x 10 x 54 - 8mm | €8,34 | ||
| Φ7.5 x 11 x 55 - 8mm | €8,34 | ||
| Φ7.75 x 11 x 55 - 8mm | €9,11 | ||
| Φ8 x 11 x 55 - 8mm | €8,56 | ||
| Φ8.5 x 11 x 61 - 10mm | €9,40 | ||
| Φ8.7 x 11 x 61 - 10mm | €10,53 | ||
| Φ9 x 11 x 61 - 10mm | €11,29 | ||
| Φ9.5 x 13 x 63 - 10mm | €12,55 | ||
| Φ9.7 x 13 x 63 - 10mm | €12,55 | ||
| Φ10 x 13 x 63 - 10mm | €9,19 | ||
| Φ11 x 13 x 70 - 12mm | €9,96 | ||
| Φ12 x 16 x 73 - 12mm | €10,09 | ||
| Φ13 x 16 x 73 - 12mm | €18,17 | ||
| Φ14 x 16 x 73 - 12mm | €12,14 | ||
| Φ15 x 19 x 79 - 16mm | €18,45 | ||
| Φ16 x 19 x 79 - 16mm | €14,15 | ||
| Φ17 x 19 x 79 - 16mm | €25,10 | ||
| Φ18 x 19 x 79 - 16mm | €16,40 | ||
| Φ19 x 22 x 88 - 20mm | €30,00 | ||
| Φ20 x 22 x 88 - 20mm | €18,88 | ||
| Φ21 x 22 x 88 - 20mm | €36,15 | ||
| Φ22 x 22 x 88 - 20mm | €27,78 | ||
| Φ24 x 26 x 102 - 25mm | €36,40 | ||
| Φ25 x 26 x 102 - 25mm | €36,40 | ||
| Φ26 x 26 x 102 - 25mm | €47,55 | ||
| Φ28 x 26 x 102 - 25mm | €51,84 | ||
| Φ30 x 26 x 102 - 25mm | €53,58 | ||
| Φ32 x 32 x 112 - 32mm | €60,67 | ||
| Φ36 x 32 x 112 - 32mm | €79,10 | ||
| Φ40 x 38 x 130 - 40mm | €97,62 |
