Endmills cobalt 3F HSSCo, 74280
SKU: ST-74280-028
VENDOR: STOCK
Prices without VAT 24%

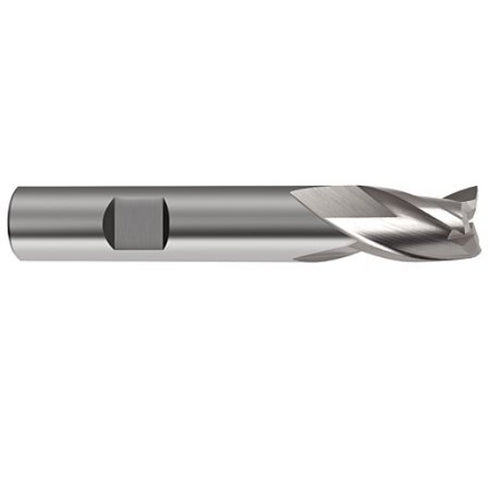

The cobalt (HSSCo) three-flute (3F) end mill with a weldon shank and extra-short length is ideal for machining materials with tensile strengths up to approximately 1200 N/mm². The center cutting design ensures precision, while the three-flute design allows for smooth and efficient material removal. Perfect for general applications and demanding machining conditions.
Features:
✔ Material: Cobalt (HSSCo)
✔ Three-flute (3F) design for smooth and efficient cutting
✔ Extra-short length for better maneuverability
✔ Weldon shank for secure clamping
✔ Center cutting for precise results

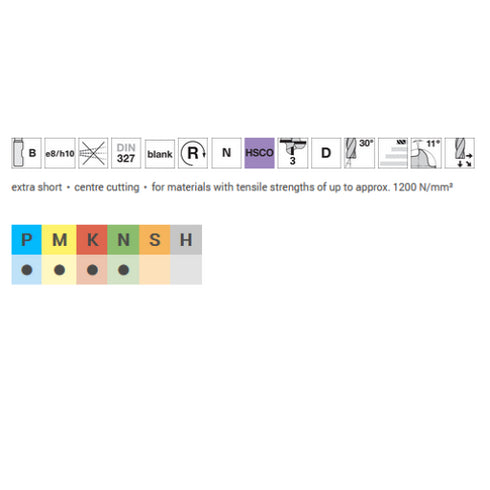

✔ Suitable for materials with tensile strengths up to 1200 N/mm²
Application Categories:
- Machining of steel and cast iron
- Ideal for materials with high tensile strength
- General machining applications

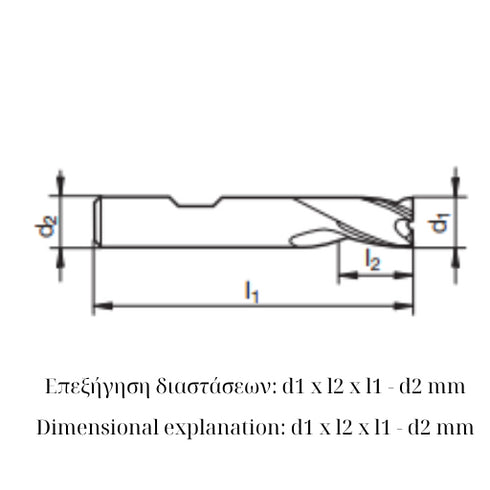

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ2.8 x 5 x 49 - 6mm | €25,78 | ||
| Φ3 x 5 x 49 - 6mm | €12,12 | ||
| Φ3.8 x 7 x 51 - 6mm | €16,71 | ||
| Φ4 x 7 x 51 - 6mm | €12,12 | ||
| Φ4.8 x 8 x 52 - 6mm | €16,71 | ||
| Φ5 x 8 x 52 - 6mm | €12,12 | ||
| Φ5.75 x 8 x 52 - 6mm | €16,71 | ||
| Φ6 x 8 x 52 - 6mm | €12,12 | ||
| Φ7 x 10 x 60 - 10mm | €19,64 | ||
| Φ7.75 x 11 x 61 - 10mm | €19,64 | ||
| Φ8 x 11 x 61 - 10mm | €15,57 | ||
| Φ9.7 x 13 x 63 - 10mm | €23,39 | ||
| Φ10 x 13 x 63 - 10mm | €16,84 | ||
| Φ11.7 x 13 x 70 - 12mm | €30,67 | ||
| Φ12 x 16 x 73 - 12mm | €24,99 | ||
| Φ13.7 x 16 x 73 - 12mm | €44,49 | ||
| Φ14 x 16 x 73 - 12mm | €33,31 | ||
| Φ15.7 x 19 x 79 - 16mm | €47,63 | ||
| Φ16 x 19 x 79 - 16mm | €40,12 | ||
| Φ18 x 19 x 79 - 16mm | €48,20 | ||
| Φ20 x 22 x 88 - 20mm | €55,23 | ||
| Φ25 x 26 x 102 - 25mm | €130,45 |
