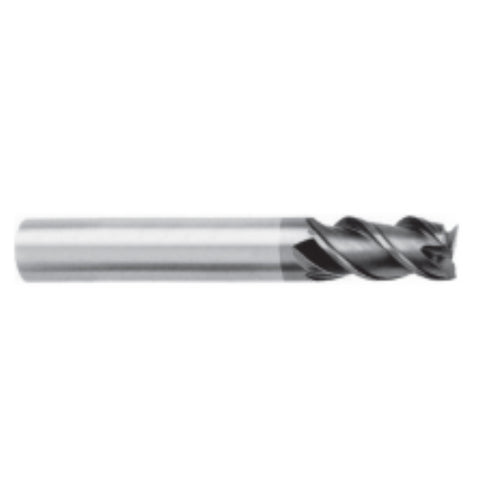

Carbide finishing endmill 3F, 5502R303GM
SKU: 5502R303GM-0200
VENDOR: ZCC CT
Prices without VAT 24%
The 5502R303GM carbide end mill is a 3-flute (3F) finishing tool with a cylindrical shank, designed for high-precision machining and excellent surface quality. Its special coating enhances durability and reduces wear, ensuring long-lasting performance in demanding machining applications.
Features:
✔ Material: Carbide
✔ 3-flute (3F) design for smooth and precise cutting
✔ High-performance coating for extended tool life
✔ Cylindrical shank for stability and easy installation
✔ Ideal for achieving fine surface finishes on various materials

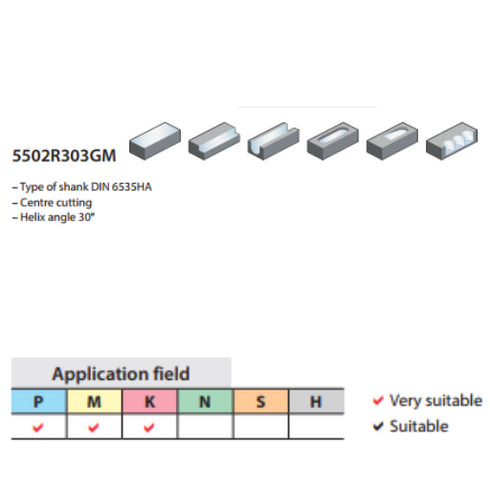

Material Categories:
- Steel & Alloys: Perfect for high-precision finishing
- Stainless Steel: Reduced tool wear and clean cuts
- Non-Ferrous Metals: Smooth machining without clogging the flutes

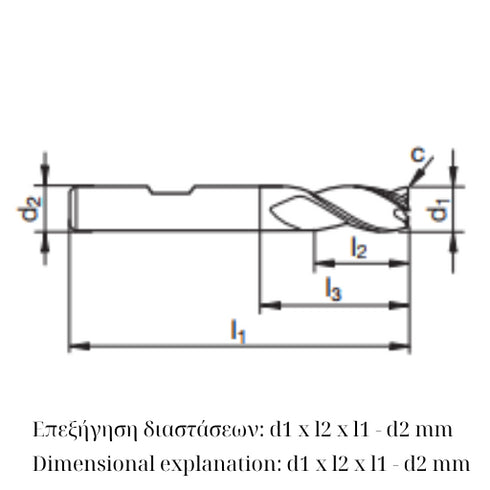

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information, cutting conditions, and specifications, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ2 x 6 x 57 - 6mm | €12,56 | ||
| Φ3 x 7 x 57 - 6mm | €13,27 | ||
| Φ4 x 8 x 57 - 6mm | €13,27 | ||
| Φ5 x 10 x 57 - 6mm | €13,27 | ||
| Φ6 x 10 x 57 - 6mm | €13,27 | ||
| Φ8 x 16 x 63 - 8mm | €17,07 | ||
| Φ10 x 19 x 72 - 10mm | €25,14 | ||
| Φ12 x 22 x 83 - 12mm | €35,82 | ||
| Φ13 x 22 x 83 - 14mm | €58,24 | ||
| Φ14 x 22 x 83 - 14mm | €54,72 | ||
| Φ16 x 26 x 92 - 16mm | €61,40 | ||
| Φ18 x 26 x 92 - 18mm | €81,50 | ||
| Φ20 x 32 x104 - 20mm | €107,44 |
