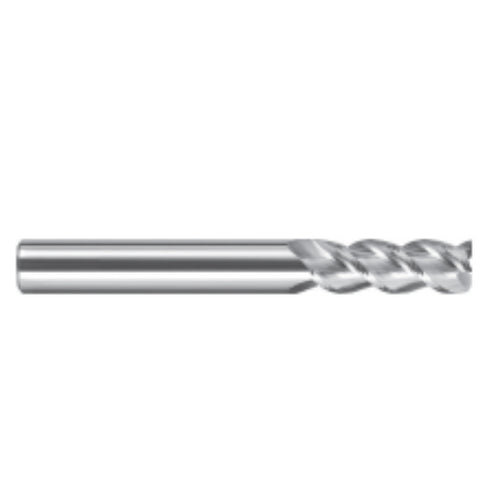

Carbide endmill for aluminium 3F, AL-3E
SKU: AL-3E-D1.0 YK30F
VENDOR: ZCC CT
Prices without VAT 24%
€11,67
DESCRIPTION
The AL-3E carbide end mill is a 3-flute (3F) tool designed specifically for machining aluminum and aluminum alloys. Featuring a cylindrical shank, it ensures high precision cutting and effective chip evacuation. Ideal for both general machining and finishing applications.
Features:
✔ Material: Carbide
✔ 3-flute (3F) design for smooth chip removal
✔ Suitable for aluminum and non-ferrous metals
✔ Cylindrical shank for stability and easy installation
✔ High durability and precision cutting performance

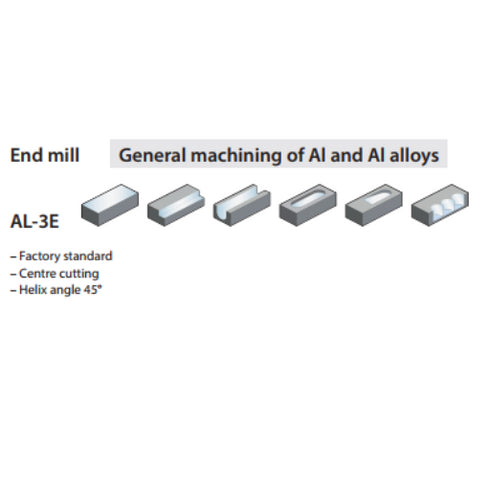

Material Categories:
- Aluminum & Aluminum Alloys: Excellent performance without clogging the flutes
- Non-Ferrous Metals: Smooth machining with efficient chip evacuation

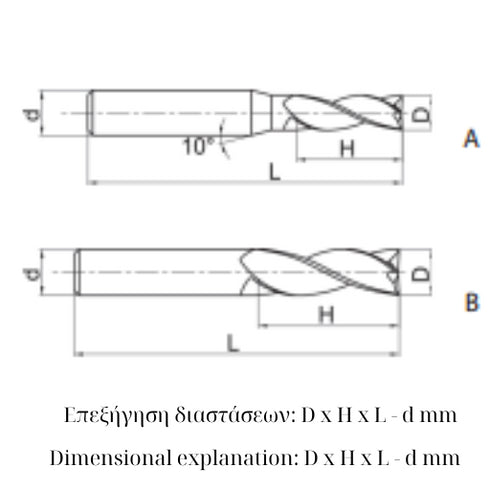

Dimensional explanation: D x H x L - d mm
For detailed information, cutting conditions, and specifications, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ1 x 3 x 50 - 4mm | €11,67 | ||
| Φ1.5 x 4 x 50 - 4mm | €11,02 | ||
| Φ2 x 6 x 50 - 4mm | €11,02 | ||
| Φ2.5 x 7 x 50 - 4mm | €11,02 | ||
| Φ3 x 9 x 50 - 6mm | €12,43 | ||
| Φ4 x 12 x 50 - 6mm | €12,43 | ||
| Φ5 x 15 x 50 - 6mm | €12,43 | ||
| Φ6 x 18 x 60 - 6mm | €13,85 | ||
| Φ8 x 20 x 60 - 8mm | €23,67 | ||
| Φ10 x 30 x 75 - 10mm | €43,33 | ||
| Φ12 x 32 x 75 - 12mm | €55,88 | ||
| Φ16 x 45 x 100 - 16mm | €107,50 | ||
| Φ20 x 45 x100 - 20mm | €168,59 |
