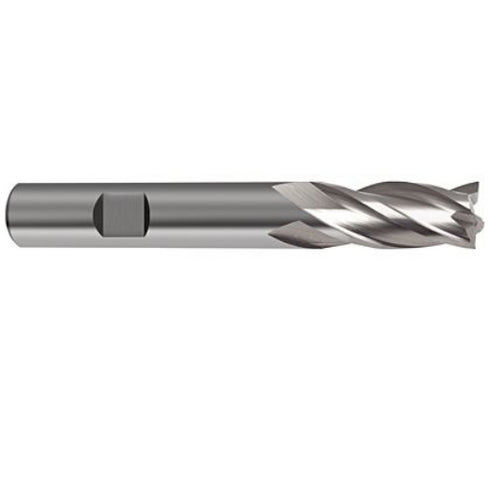

Endmill with multi flutes 4F/5F/6F HSS
SKU: AG1422-2
VENDOR: T-F
Prices without VAT 24%
€11,26
DESCRIPTION
HSS multi-flute end mills (4F/5F/6F) of standard size with a Weldon shank, suitable for general machining applications.
Features:
- Material: HSS (High-Speed Steel)
- Available flute configurations: 4F, 5F, 6F
- Standard size
- Weldon shank

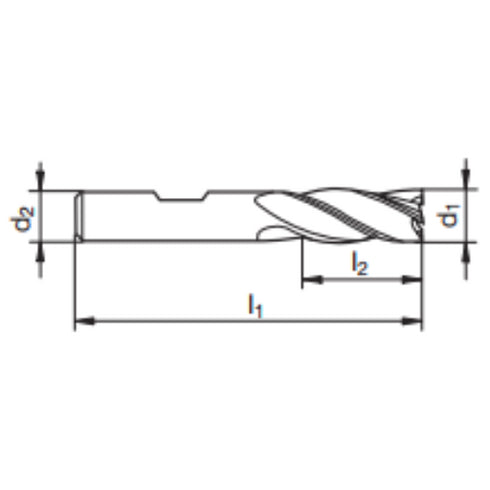

Dimensional explanation: d1 x l2 x l1 - d2 mm
For additional information and detailed specifications, download the PDF manual.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ2 x 7 x 51 - 6mm | €11,26 | ||
| Φ2.5 x 8 x 52 - 6mm | €11,36 | ||
| Φ3 x 8 x 52 - 6mm | €9,84 | ||
| Φ3.5 x 10 x 54 - 6mm | €11,36 | ||
| Φ3.8 x 11 x 55 - 6mm | €12,98 | ||
| Φ4 x 11 x 55 - 6mm | €9,84 | ||
| Φ4.5 x 13 x 57 - 6mm | €11,36 | ||
| Φ4.8 x 13 x 57 - 6mm | €12,98 | ||
| Φ5 x 13 x 57 - 6mm | €9,84 | ||
| Φ5.5 x 13 x 57 - 6mm | €11,60 | ||
| Φ5.75 x 13 x 57 - 6mm | €12,56 | ||
| Φ6 x 13 x 57 - 6mm | €9,99 | ||
| Φ6.75 x 16 x 60 - 8mm | €16,61 | ||
| Φ7 x 16 x 60 - 8mm | €12,98 | ||
| Φ7.5 x 19 x 63 - 8mm | €12,98 | ||
| Φ7.75 x 19 x 63 - 8mm | €14,43 | ||
| Φ8 x 19 x 69 - 8mm | €12,26 | ||
| Φ8.5 x 19 x 69 - 10mm | €14,34 | ||
| Φ8.7 x 19 x 69 - 10mm | €15,97 | ||
| Φ9 x 19 x 69 - 10mm | €14,43 | ||
| Φ9.7 x 22 x 72 - 10mm | €16,87 | ||
| Φ10 x 22 x 72 - 10mm | €13,80 | ||
| Φ10.5 x 22 x 79 - 12mm | €7,67 | ||
| Φ11 x 22 x 79 - 12mm | €11,45 | ||
| Φ11.5 x 26 x 83 - 12mm | €7,67 | ||
| Φ12 x 26 x 83 - 12mm | €15,67 | ||
| Φ13 x 26 x 83 - 12mm | €23,41 | ||
| Φ14 x 26 x 83 - 12mm | €19,46 | ||
| Φ15 x 32 x 92 - 16mm | €23,15 | ||
| Φ16 x 32 x 92 - 16mm | €21,71 | ||
| Φ17 x 32 x 92 - 16mm | €35,73 | ||
| Φ18 x 32 x 92 - 16mm | €27,26 | ||
| Φ19 x 38 x 104 - 20mm | €45,08 | ||
| Φ20 x 38 x 104 - 20mm | €32,82 | ||
| Φ21 x 38 x 104 - 20mm | €34,75 | ||
| Φ22 x 38 x 104 - 20mm | €37,61 | ||
| Φ24 x 45 x 121 - 25mm | €47,90 | ||
| Φ25 x 45 x 121 - 25mm | €47,90 | ||
| Φ26 x 45 x 121 - 25mm | €56,65 | ||
| Φ28 x 45 x 121 - 25mm | €78,41 | ||
| Φ30 x 45 x 121 - 25mm | €88,95 | ||
| Φ32 x 53 x 133 - 32mm | €99,27 | ||
| Φ36 x 53 x 133 - 32mm | €127,04 | ||
| Φ40 x 63 x 155 - 40mm | €181,98 |
