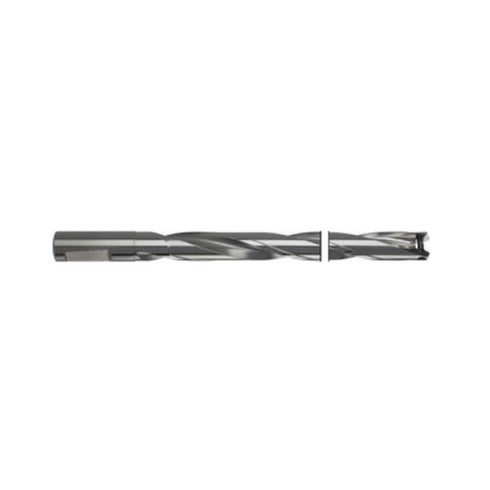

Carbide drill with indexable inserts 10xD, 77004
SKU: ST-77004-11
VENDOR: STOCK
Prices without VAT 24%
€522,38
DESCRIPTION
The indexable drills 10xD, 77004, deliver outstanding performance and precision for deep drilling operations.
Product Features:
- Especially High Wear Resistance: Ensures long-lasting durability even in challenging work environments.
- Optimised Flute Design: Facilitates effective chip evacuation for continuous and stable performance.
- Optimised Coolant Duct Exit: Enhances cooling efficiency, reduces heat buildup, and extends tool life.
Ideal for precision industrial applications and high-demand projects.

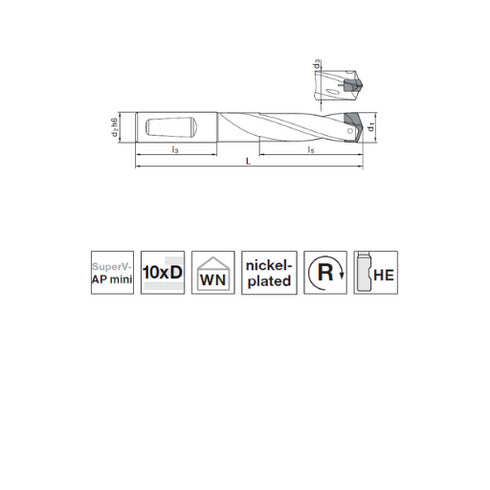

Dimensional explanation: d1 x l5 x L - d2
For additional information and detailed specifications, download the PDF manual.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ11-11.49 x 117.1 x 182 - 12mm | €522,38 | ||
| Φ11.5-11.99 x 122.1 x 187 - 12mm | €522,38 | ||
| Φ12-12.49 x 127.2 x 194 - 12mm | €522,38 | ||
| Φ12.5-12.99 x 132.3 x 199 - 14mm | €522,38 | ||
| Φ13-13.49 x 137.5 x 205 - 14mm | €522,38 | ||
| Φ13.5-13.99 x 142.5 x 211 - 14mm | €522,38 | ||
| Φ14-14.49 x 147.7 x 217 - 14mm | €566,27 | ||
| Φ14.5-14.99 x 152.8 x 225 - 16mm | €566,27 | ||
| Φ15-15.49 x 157.8 x 232 - 16mm | €566,27 | ||
| Φ15.5-15.99 x 162.9 x 237 - 16mm | €566,27 | ||
| Φ16-16.49 x 168 x 243 - 16mm | €703,61 | ||
| Φ16.5-16.99 x 170 x 249 - 20mm | €703,61 | ||
| Φ17-17.49 x 178.3 x 255 - 20mm | €703,61 | ||
| Φ17.5-17.99 x 183.5 x 260 - 20mm | €703,61 | ||
| Φ18-18.49 x 188.4 x 267 - 20mm | €755,06 | ||
| Φ18.5-18.99 x 193.5 x 274 - 25mm | €755,06 | ||
| Φ19-19.49 x 198.7 x 280 - 25mm | €755,06 | ||
| Φ19.5-19.99 x 203.7 x 286 - 25mm | €755,06 | ||
| Φ20-20.49 x 208.9 x 292 - 25mm | €755,06 | ||
| Φ20.5-20.99 x 214 x 306 - 25mm | €755,06 | ||
| Φ21-21.49 x 219.1 x 312 - 25mm | €926,94 | ||
| Φ21.5-21.99 x 224.2 x 317 - 25mm | €926,94 | ||
| Φ22-22.49 x 229.3 x 323 - 25mm | €926,94 | ||
| Φ22.5-22.99 x 234.4 x 329 - 25mm | €926,94 | ||
| Φ23-23.49 x 239.5x 335 - 25mm | €1.048,43 | ||
| Φ23.5-23.99 x 244.6 x 341 - 25mm | €1.048,43 | ||
| Φ24-24.49 x 249.7 x 347 - 25mm | €1.048,43 | ||
| Φ24.5-24.99 x 254.8 x 352 - 25mm | €1.048,43 | ||
| Φ25-25.49 x 259.9 x 359 - 25mm | €1.048,43 | ||
| Φ25.5-25.99 x 265 x 369 - 32mm | €1.048,43 | ||
| Φ26-26.49 x 270 x 377 - 32mm | €1.048,43 | ||
| Φ26.5-26.99 x 275 x 382 - 32mm | €1.204,56 | ||
| Φ27-27.49 x 280.1 x 388- 32mm | €1.204,56 | ||
| Φ27.5-27.99 x 285.2 x 394 - 32mm | €1.204,56 | ||
| Φ28-28.49 x 290.3 x 400 - 32mm | €1.204,56 | ||
| Φ28.5-28.99 x 295.4 x 405 - 32mm | €1.377,39 | ||
| Φ29-29.49 x 300.5 x 412 - 32mm | €1.377,39 | ||
| Φ29.5-29.99 x 305.6 x 418 - 32mm | €1.377,39 | ||
| Φ30-30.49 x 310.6 x 424 - 32mm | €1.377,39 | ||
| Φ30.5-30.99 x 315.7 x 429 - 32mm | €1.564,29 | ||
| Φ31-31.49 x 320.8 x 435 - 32mm | €1.564,29 | ||
| Φ31.5-31.99 x 325.9 x 441 - 32mm | €1.564,29 |
