  • Drills HSS 15xD with taper shank DIN1870, 71325
HSS Taper Drill 15xD DIN1870, 71325
HSS Taper Drill 15xD DIN1870, 71325 Dimensions
HSS Taper Drill 15xD DIN1870, 71325 Details
HSS Taper Drill 15xD DIN1870, 71325
HSS Taper Drill 15xD DIN1870, 71325 Dimensions
HSS Taper Drill 15xD DIN1870, 71325 Details
Zoom
CLEARANCE SALE
RECOMMENDED ✓

Drills HSS 15xD with taper shank DIN1870, 71325

SKU: ST-71325-08

VENDOR: STOCK

Prices without VAT 24%

€112,88

Φ8 x 158 x 265 x MK-1 - €112,88 EUR Φ8.33 x 157 x 265 x MK-1 - €121,01 EUR Φ8.5 x 157 x 265 x MK-1 - €132,20 EUR Φ9 x 167 x 275 x MK-1 - €124,79 EUR Φ10 x 176 x 285 x MK-1 - €134,79 EUR Φ11 x 185 x 300 x MK-1 - €142,40 EUR Φ11.5 x 185 x 300 x MK-1 - €168,89 EUR Φ12 x 194 x 310 x MK-1 - €143,62 EUR Φ12.5 x 194 x 310 x MK-1 - €165,03 EUR Φ12.7 x 194 x 310 x MK-1 - €197,93 EUR Φ13 x 193 x 310 x MK-1 - €157,49 EUR Φ13.5 x 208 x 325 x MK-1 - €176,54 EUR Φ14 x 207 x 325 x MK-1 - €170,17 EUR Φ15 x 206 x 340 x MK-2 - €185,25 EUR Φ16 x 215 x 355 x MK-2 - €194,13 EUR Φ17 x 214 x 355 x MK-2 - €200,44 EUR Φ17.5 x 229 x 370 x MK-2 - €216,78 EUR Φ18 x 228 x 370 x MK-2 - €216,78 EUR Φ18.5 x 228 x 370 x MK-2 - €257,12 EUR Φ19 x 228 x 370 x MK-2 - €244,49 EUR Φ19.5 x 242 x 385 x MK-2 - €320,10 EUR Φ20 x 242 x 385 x MK-2 - €279,70 EUR Φ21 x 241 x 385 x MK-2 - €330,24 EUR Φ21.5 x 250 x 405 x MK-2 - €433,38 EUR Φ22 x 250 x 405 x MK-2 - €335,23 EUR Φ23 x 249 x 405 x MK-2 - €438,54 EUR Φ24 x 268 x 440 x MK-3 - €463,76 EUR Φ25 x 267 x 440 x MK-3 - €455,79 EUR Φ26 x 266 x 440 x MK-3 - €486,88 EUR Φ28 x 279 x 460 x MK-3 - €600,61 EUR Φ29 x 278 x 460 x MK-3 - €643,23 EUR Φ30 x 277 x 460 x MK-3 - €643,23 EUR
MESSAGE
DESCRIPTION

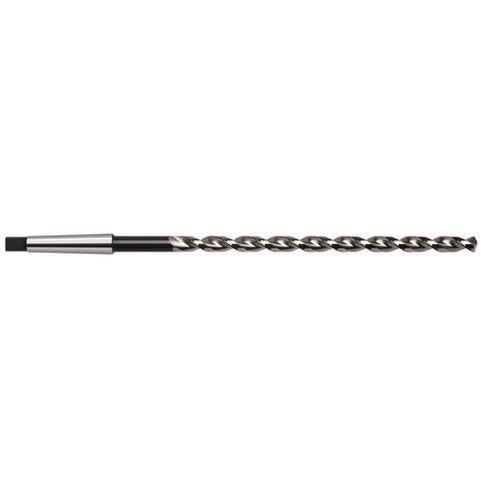

Ultra-long HSS drill (15xD) with a tapered shank, designed for deep hole drilling with high precision and efficiency. Its wide flutes enhance chip evacuation, while the steam-tempered surface (> Ø 16 mm) increases wear resistance and extends tool life.

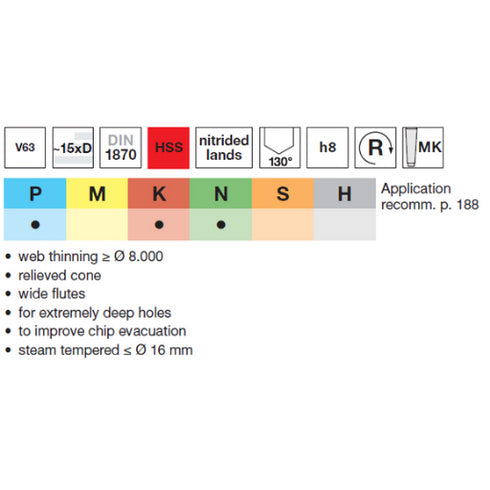

Features:
✔ Extra-long 15xD design for deep hole drilling applications
✔ Tapered shank for stability and secure clamping
✔ Wide flutes for efficient chip removal
✔ Web thinning ≥ Ø 8.000 for reduced drilling resistance
✔ Steam-tempered surface (> Ø 16 mm) for enhanced durability

Suitable for machining:
✅ Grey cast iron, malleable and spheroidal iron
✅ Steels up to 1000 N/mm²
✅ CrNi steels, stainless steels

Perfect for professional use in machine shops and industrial applications requiring ultra-deep drilling.

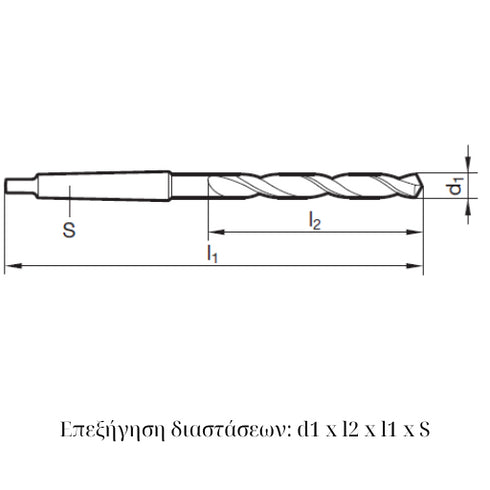

Dimentional Explanation: d1 x l2 x l1 x S

For detailed information and cutting conditions, download the PDF file here.
Name Price Quantity Action
Φ8 x 158 x 265 x MK-1 €112,88
Φ8.33 x 157 x 265 x MK-1 €121,01
Φ8.5 x 157 x 265 x MK-1 €132,20
Φ9 x 167 x 275 x MK-1 €124,79
Φ10 x 176 x 285 x MK-1 €134,79
Φ11 x 185 x 300 x MK-1 €142,40
Φ11.5 x 185 x 300 x MK-1 €168,89
Φ12 x 194 x 310 x MK-1 €143,62
Φ12.5 x 194 x 310 x MK-1 €165,03
Φ12.7 x 194 x 310 x MK-1 €197,93
Φ13 x 193 x 310 x MK-1 €157,49
Φ13.5 x 208 x 325 x MK-1 €176,54
Φ14 x 207 x 325 x MK-1 €170,17
Φ15 x 206 x 340 x MK-2 €185,25
Φ16 x 215 x 355 x MK-2 €194,13
Φ17 x 214 x 355 x MK-2 €200,44
Φ17.5 x 229 x 370 x MK-2 €216,78
Φ18 x 228 x 370 x MK-2 €216,78
Φ18.5 x 228 x 370 x MK-2 €257,12
Φ19 x 228 x 370 x MK-2 €244,49
Φ19.5 x 242 x 385 x MK-2 €320,10
Φ20 x 242 x 385 x MK-2 €279,70
Φ21 x 241 x 385 x MK-2 €330,24
Φ21.5 x 250 x 405 x MK-2 €433,38
Φ22 x 250 x 405 x MK-2 €335,23
Φ23 x 249 x 405 x MK-2 €438,54
Φ24 x 268 x 440 x MK-3 €463,76
Φ25 x 267 x 440 x MK-3 €455,79
Φ26 x 266 x 440 x MK-3 €486,88
Φ28 x 279 x 460 x MK-3 €600,61
Φ29 x 278 x 460 x MK-3 €643,23
Φ30 x 277 x 460 x MK-3 €643,23
