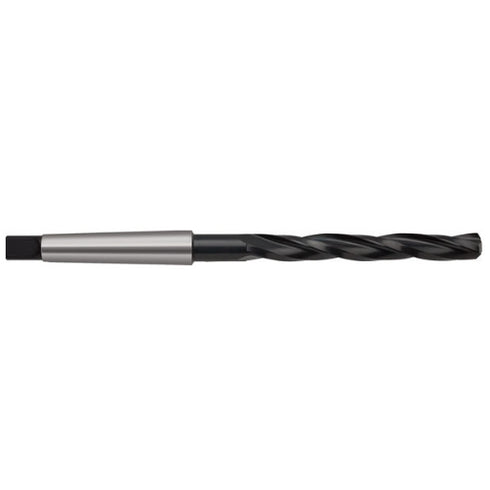

Drills HSS 3F DIN343, 72210
SKU: ST-72210-09
VENDOR: STOCK
Prices without VAT 24%
€95,15
DESCRIPTION
HSS three-flute drill with a taper shank, specifically designed to improve hole quality and correct misalignments. Its relieved cone design provides exceptionally high rigidity and stability, making it suitable for pre-drilled, pre-cast, and pre-punched holes.

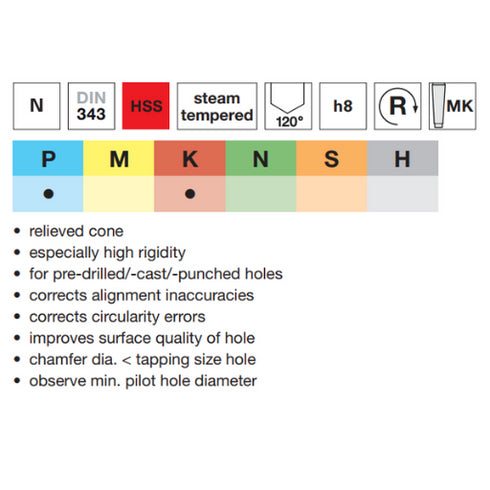

Features:
- High rigidity for stable performance and minimal vibrations
- Designed for pre-drilled, pre-cast, and pre-punched holes
- Corrects alignment inaccuracies and circularity errors
- Enhances the surface quality of the hole
- Chamfer diameter smaller than the tapping size hole
- Minimum pilot hole diameter ("d0") must be observed
Ideal for:
- Applications requiring high drilling precision
- Improving hole geometry and quality before tapping operations
- Use in industrial and metallurgical processes

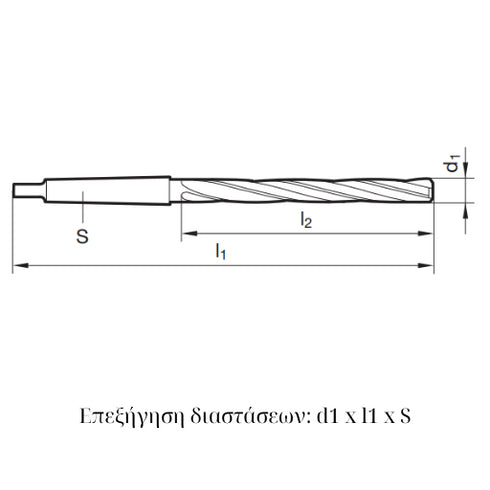

Dimentional Explanation: d1 x l1 x S
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ9 x 162 x MK-1 | €95,15 | ||
| Φ9.8 x 168 x MK-1 | €71,97 | ||
| Φ10 x 168 x MK-1 | €88,09 | ||
| Φ12.75 x 182 x MK-1 | €93,20 | ||
| Φ13.75 x 189 x MK-1 | €93,20 | ||
| Φ14 x 189 x MK-1 | €84,37 | ||
| Φ15 x 212 x MK-2 | €94,57 | ||
| Φ15.75 x 218 x MK-2 | €99,55 | ||
| Φ16 x 218 x MK-2 | €97,02 | ||
| Φ17 x 223 x MK-2 | €103,28 | ||
| Φ19 x 223 x MK-2 | €110,98 | ||
| Φ19.7 x 238 x MK-2 | €118,38 | ||
| Φ20 x 238 x MK-2 | €104,51 | ||
| Φ21 x 243 x MK-2 | €138,68 | ||
| Φ22 x 248 x MK-2 | €138,68 | ||
| Φ23 x 253 x MK-2 | €147,39 | ||
| Φ24 x 281 x MK-3 | €161,25 | ||
| Φ24.7 x 281 x MK-3 | €175,15 | ||
| Φ25 x 281 x MK-3 | €153,71 | ||
| Φ26 x 286 x MK-3 | €173,91 | ||
| Φ27 x 291 x MK-3 | €207,89 | ||
| Φ29.7 x 296 x MK-3 | €219,28 | ||
| Φ34.6 x 339 x MK-4 | €325,08 | ||
| Φ38 x 349 x MK-4 | €428,51 |
