Carbide drills 5xD without coolant, 51787 (D10.1 - D20)
SKU: ST-71787-101
VENDOR: STOCK
Prices without VAT 24%

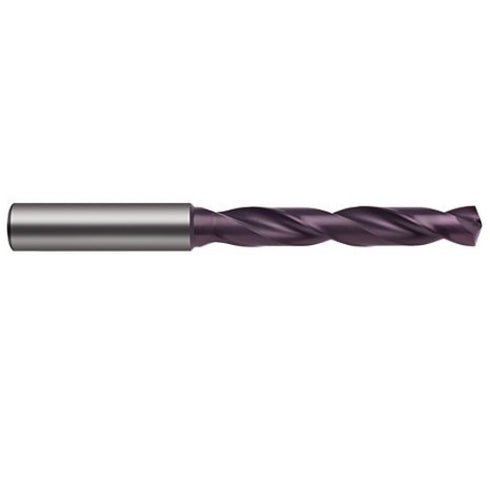

The carbide drill 5xD 51787 is a high-performance drilling tool, designed for deep hole drilling without coolant supply. Its optimized cutting geometry ensures excellent performance across various materials, including steels, cast iron, brass, and high-Si aluminum alloys.

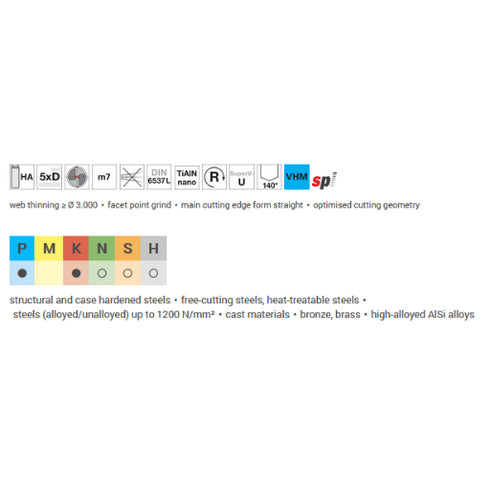

Product Features:
• Type: Carbide drill 5xD without coolant.
• Design: Web thinning ≥ Ø 3.000, facet point grind.
• Main Cutting Edge: Straight cutting edge form.
• Shank: Cylindrical.
• Drilling Depth: Up to 5xD.
• Diameter: Φ2.5 - Φ10.
• Applications: Suitable for steels up to 1200 N/mm², cast materials, bronze, brass, high-alloyed AlSi alloys.

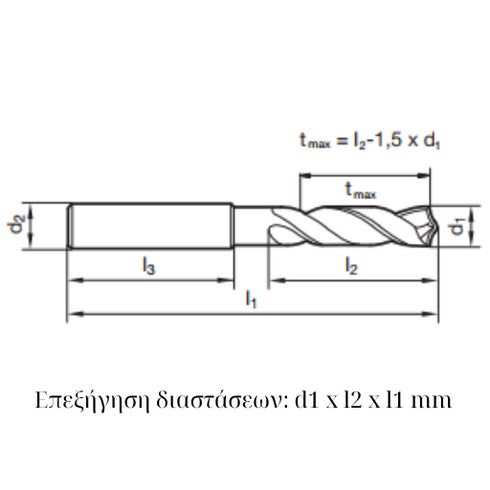

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ10.1 x 59 x 118 - 12mm | €64,21 | ||
| Φ10.2 x 58 x 118 - 12mm | €64,21 | ||
| Φ10.3 x 58 x 118 - 12mm | €64,21 | ||
| Φ10.32 x 58 x 118 - 12mm | €64,21 | ||
| Φ10.4 x 58 x 118 - 12mm | €64,21 | ||
| Φ10.5 x 58 x 118 - 12mm | €64,21 | ||
| Φ10.6 x 58 x 118 - 12mm | €64,21 | ||
| Φ10.7 x 58 x 118 - 12mm | €64,21 | ||
| Φ10.72 x 58 x 118 - 12mm | €64,21 | ||
| Φ10.8 x 58 x 118 - 12mm | €64,21 | ||
| Φ10.9 x 58 x 118 - 12mm | €64,21 | ||
| Φ11 x 57 x 118 - 12mm | €64,21 | ||
| Φ11.1 x 57 x 118 - 12mm | €64,21 | ||
| Φ11.11 x 57 x 118 - 12mm | €64,21 | ||
| Φ11.2 x 57 x 118 - 12mm | €64,21 | ||
| Φ11.3 x 57 x 118 - 12mm | €64,21 | ||
| Φ11.4 x 57 x 118 - 12mm | €64,21 | ||
| Φ11.5 x 57 x 118 - 12mm | €64,21 | ||
| Φ11.6 x 57 x 118 - 12mm | €64,21 | ||
| Φ11.7 x 57 x 118 - 12mm | €64,21 | ||
| Φ11.8 x 56 x 118 - 12mm | €64,21 | ||
| Φ11.9 x 56 x 118 - 12mm | €64,21 | ||
| Φ11.91 x 56 x 118 - 12mm | €64,21 | ||
| Φ12 x 56 x 118 - 12mm | €64,21 | ||
| Φ12.1 x 62 x 124 - 14mm | €84,69 | ||
| Φ12.2 x 62 x 124 - 14mm | €84,69 | ||
| Φ12.3 x 62 x 124 - 14mm | €84,69 | ||
| Φ12.4 x 62 x 124 - 14mm | €84,69 | ||
| Φ12.5 x 62 x 124 - 14mm | €84,69 | ||
| Φ12.6 x 61 x 124 - 14mm | €84,69 | ||
| Φ12.7 x 61 x 124 - 14mm | €84,69 | ||
| Φ13 x 61 x 124 - 14mm | €84,69 | ||
| Φ13.1 x 61 x 124 - 14mm | €84,69 | ||
| Φ13.2 x 61 x 124 - 14mm | €84,69 | ||
| Φ13.3 x 61 x 124 - 14mm | €84,69 | ||
| Φ13.5 x 60 x 124 - 14mm | €84,69 | ||
| Φ13.7 x 60 x 124 - 14mm | €84,69 | ||
| Φ13.8 x 60 x 124 - 14mm | €84,69 | ||
| Φ14 x 60 x 124 - 14mm | €84,69 | ||
| Φ14.1 x 66 x 133 - 16mm | €110,11 | ||
| Φ14.2 x 65 x 133 - 16mm | €110,11 | ||
| Φ14.29 x 65 x 133 - 16mm | €110,11 | ||
| Φ14.3 x 65 x 133 - 16mm | €110,11 | ||
| Φ14.4 x 65 x 133 - 16mm | €110,11 | ||
| Φ14.5 x 65 x 133 - 16mm | €110,11 | ||
| Φ14.7 x 65 x 133 - 16mm | €110,11 | ||
| Φ15 x 64 x 133 - 16mm | €110,11 | ||
| Φ15.1 x 64 x 133 - 16mm | €110,11 | ||
| Φ15.2 x 64 x 133 - 16mm | €110,11 | ||
| Φ15.5 x 64 x 133 - 16mm | €110,11 | ||
| Φ15.6 x 64 x 133 - 16mm | €110,11 | ||
| Φ15.7 x 64 x 133 - 16mm | €110,11 | ||
| Φ15.8 x 63 x 133 - 16mm | €110,11 | ||
| Φ15.87 x 63 x 133 - 16mm | €110,11 | ||
| Φ16 x 63 x 133 - 16mm | €110,11 | ||
| Φ16.5 x 73 x 143 - 18mm | €175,39 | ||
| Φ17 x 72 x 143 - 18mm | €175,39 | ||
| Φ17.5 x 71 x 143 - 18mm | €175,39 | ||
| Φ18 x 71 x 143 - 18mm | €175,39 | ||
| Φ18.5 x 78 x 153 - 20mm | €190,37 | ||
| Φ19 x 78 x 153 - 20mm | €190,37 | ||
| Φ19.5 x 77 x 153 - 20mm | €190,37 | ||
| Φ20 x 76 x 153 - 20mm | €190,37 |
