Drill VHM 5xD (D1 - D5) , 71290
SKU: ST-71290-011
VENDOR: STOCK
Prices without VAT 24%
€4,62
DESCRIPTION

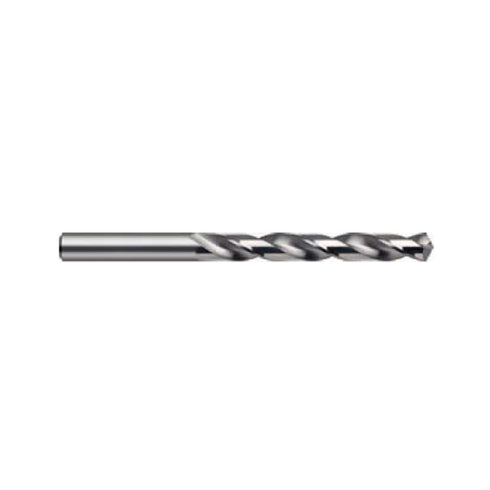

VHM drills, 5xD length, with cylindrical shank. Ideal for drilling in hardened steels, heat-treated steels, cast iron, brass, aluminum, aluminum alloys, magnesium alloys, and plastics, including fiber-reinforced plastics.
Features:
- Web thinning ≥ Ø 2.100
- Facet point grind
- Main cutting edge form: Straight
- Suitable for structural and case-hardened steels
- Ideal for free-cutting steels and heat-treatable steels
- Suitable for grey cast iron, bronze, and brass
- Suitable for aluminum and Al alloys
- Ideal for magnesium and magnesium alloys
- Suitable for plastics and fiber-reinforced plastics

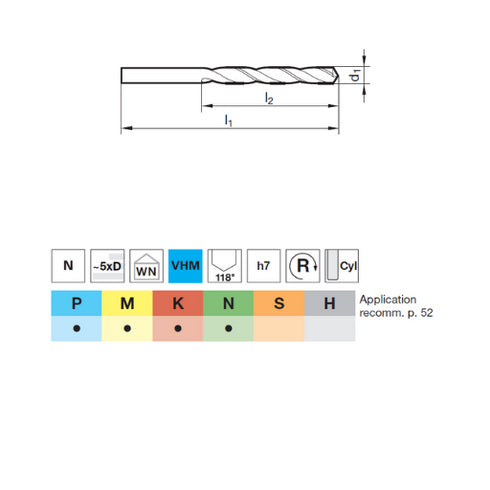

Dimensional explanation: d1 x l2 x l1 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ1.1 x 14 x 36mm | €4,62 | ||
| Φ1.2 x 16 x 38mm | €5,15 | ||
| Φ1.3 x 16 x 38mm | €5,15 | ||
| Φ1.4 x 18 x 40mm | €4,73 | ||
| Φ1.5 x 18 x 40mm | €4,73 | ||
| Φ1.6 x 20 x 43mm | €4,83 | ||
| Φ1.7 x 20 x 43mm | €5,25 | ||
| Φ1.8 x 22 x 46mm | €5,46 | ||
| Φ1.9 x 22 x 46mm | €5,46 | ||
| Φ2 x 24 x 49mm | €5,46 | ||
| Φ2.1 x 24 x 49mm | €6,20 | ||
| Φ2.2 x 27 x 53mm | €6,93 | ||
| Φ2.3 x 27 x 53mm | €6,93 | ||
| Φ2.38 x 30 x 57mm | €6,93 | ||
| Φ2.4 x 30 x 57mm | €6,93 | ||
| Φ2.5 x 30 x 57mm | €6,93 | ||
| Φ2.6 x 30 x 57mm | €9,56 | ||
| Φ2.7 x 33 x 61mm | €9,56 | ||
| Φ2.78 x 33 x 61mm | €9,56 | ||
| Φ2.8 x 33 x 61mm | €9,56 | ||
| Φ2.9 x 33 x 61mm | €9,56 | ||
| Φ3 x 33 x 61mm | €9,03 | ||
| Φ3.1 x 36 x 65mm | €9,03 | ||
| Φ3.17 x 36 x 65mm | €9,03 | ||
| Φ3.2 x 36 x 65mm | €9,03 | ||
| Φ3.3 x 36 x 65mm | €9,03 | ||
| Φ3.4 x 39 x 70mm | €10,19 | ||
| Φ3.5 x 39 x 70mm | €9,56 | ||
| Φ3.57 x 39 x 70mm | €11,03 | ||
| Φ3.6 x 39 x 70mm | €11,03 | ||
| Φ3.7 x 39 x 70mm | €11,03 | ||
| Φ3.8 x 43 x 75mm | €11,03 | ||
| Φ3.9 x 43 x 75mm | €11,03 | ||
| Φ3.97 x 43 x 75mm | €11,03 | ||
| Φ4 x 43 x 75mm | €11,03 | ||
| Φ4.1 x 43 x 75mm | €11,66 | ||
| Φ4.2 x 43 x 75mm | €11,66 | ||
| Φ4.3 x 47 x 80mm | €15,12 | ||
| Φ4.37 x 47 x 80mm | €15,12 | ||
| Φ4.4 x 47 x 80mm | €15,12 | ||
| Φ4.5 x 47 x 80mm | €13,65 | ||
| Φ4.6 x 47 x 80mm | €15,75 | ||
| Φ4.7 x 47 x 80mm | €15,75 | ||
| Φ4.76 x 52 x 86mm | €15,75 | ||
| Φ4.8 x 52 x 86mm | €15,75 | ||
| Φ4.9 x 52 x 86mm | €15,75 | ||
| Φ5 x 52 x 86mm | €15,12 |
