Drill VHM 3xD (D1 - D5) , 71184
SKU: ST-71184-01
VENDOR: STOCK
Prices without VAT 24%
€4,73
DESCRIPTION

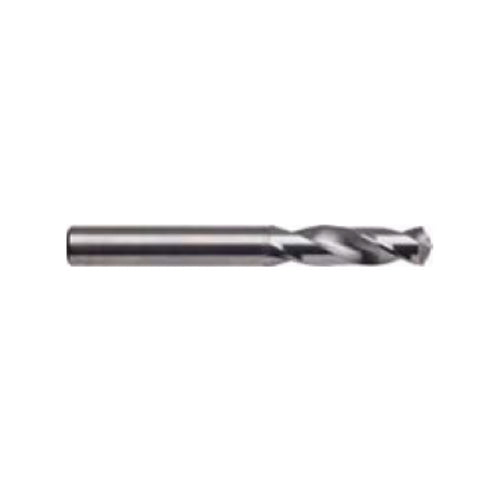

VHM drills, 3xD length, with cylindrical shank. Ideal for drilling in hardened steels, heat-treated steels, cast iron, brass, aluminum, aluminum alloys, magnesium alloys, and plastics, including fiber-reinforced plastics.
Features:
- Web thinning ≥ Ø 2.100
- Facet point grind
- Main cutting edge form: Straight
- Suitable for structural and case-hardened steels
- Ideal for free-cutting steels and heat-treatable steels
- Suitable for grey cast iron, bronze, and brass
- Suitable for aluminum and Al alloys
- Ideal for magnesium and magnesium alloys
- Suitable for plastics and fiber-reinforced plastics

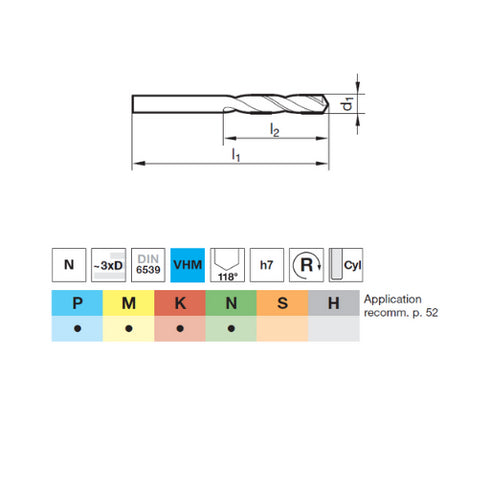

Dimensional explanation: d1 x l2 x l1 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ1 x 6 x 26mm | €4,73 | ||
| Φ1.1 x 7 x 28mm | €4,94 | ||
| Φ1.2 x 8 x 30mm | €5,04 | ||
| Φ1.3 x 8 x 30mm | €5,04 | ||
| Φ1.4 x 9 x 32mm | €5,15 | ||
| Φ1.5 x 9 x 32mm | €5,04 | ||
| Φ1.6 x 10 x 34mm | €5,15 | ||
| Φ1.7 x 10 x 34mm | €5,15 | ||
| Φ1.8 x 11 x 36mm | €5,25 | ||
| Φ1.9 x 11 x 36mm | €5,25 | ||
| Φ2 x 12 x 38mm | €4,94 | ||
| Φ2.1 x 12 x 38mm | €4,94 | ||
| Φ2.2 x 13 x 40mm | €4,94 | ||
| Φ2.3 x 13 x 40mm | €4,94 | ||
| Φ2.38 x 14 x 43mm | €4,94 | ||
| Φ2.4 x 14 x 43mm | €4,94 | ||
| Φ2.5 x 14 x 43mm | €4,94 | ||
| Φ2.6 x 14 x 43mm | €4,94 | ||
| Φ2.7 x 16 x 46mm | €7,25 | ||
| Φ2.78 x 16 x 46mm | €7,25 | ||
| Φ2.8 x 16 x 46mm | €7,25 | ||
| Φ2.9 x 16 x 46mm | €7,25 | ||
| Φ3 x 16 x 46mm | €7,25 | ||
| Φ3.1 x 18 x 49mm | €7,25 | ||
| Φ3.17 x 18 x 49mm | €7,25 | ||
| Φ3.2 x 18 x 49mm | €7,25 | ||
| Φ3.3 x 18 x 49mm | €7,25 | ||
| Φ3.4 x 20 x 52mm | €7,67 | ||
| Φ3.5 x 20 x 52mm | €7,67 | ||
| Φ3.57 x 20 x 52mm | €8,19 | ||
| Φ3.6 x 20 x 52mm | €8,19 | ||
| Φ3.7 x 20 x 52mm | €8,19 | ||
| Φ3.8 x 22 x 55mm | €9,14 | ||
| Φ3.9 x 22 x 55mm | €9,14 | ||
| Φ3.97 x 22 x 55mm | €9,14 | ||
| Φ4 x 22 x 55mm | €9,14 | ||
| Φ4.1 x 22 x 55mm | €9,98 | ||
| Φ4.2 x 22 x 55mm | €9,98 | ||
| Φ4.3 x 24 x 58mm | €9,98 | ||
| Φ4.37 x 24 x 58mm | €9,98 | ||
| Φ4.4 x 24 x 58mm | €9,98 | ||
| Φ4.5 x 24 x 58mm | €9,98 | ||
| Φ4.6 x 24 x 58mm | €9,98 | ||
| Φ4.7 x 24 x 58mm | €10,61 | ||
| Φ4.76 x 26 x 62mm | €10,61 | ||
| Φ4.8 x 26 x 62mm | €10,61 | ||
| Φ4.9 x 26 x 62mm | €10,61 | ||
| Φ5 x 26 x 62mm | €10,61 |
