Carbide drills 7xD with coolant, 51787 (D9.1- D20)
SKU: ST-51789-091
VENDOR: STOCK
Prices without VAT 24%
€168,47
DESCRIPTION

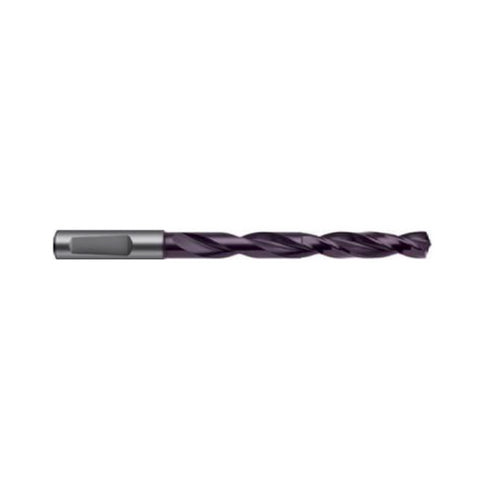

The carbide drill 7xD 51789 is a high-performance drilling tool with coating and coolant supply, designed for deep drilling with enhanced stability and precision. Its double margin design ensures better control and high-quality hole finishes.
Product Features:
• Type: Carbide drill 7xD with coolant.
• Coating: Yes.
• Shank: Cylindrical.
• Drilling Depth: Up to 7xD.
• Diameter: Φ9.1 - Φ20.
• Cutting Geometry:
- Web thinning ≥ Ø 3.000.
- Facet point grind.
- Straight main cutting edge.
- Optimized cutting geometry.
- Double margin.
• Applications: - Suitable for drilling structural and case-hardened steels.
- Ideal for machining alloyed/unalloyed steel up to 1200 N/mm².
- Suitable for cast materials, bronze, brass, and high-Si aluminum alloys.

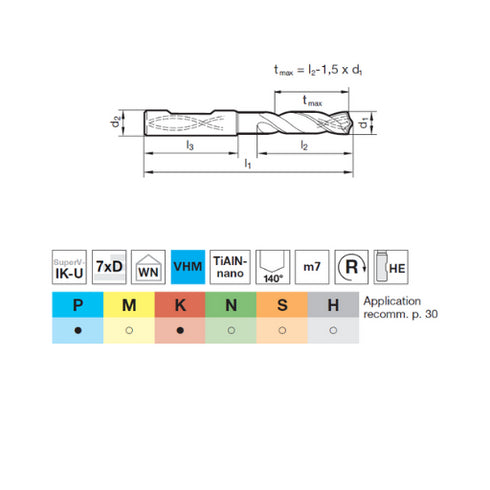

For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ9.1 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.13 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.2 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.25 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.3 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.34 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.4 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.5 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.52 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.6 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.7 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.8 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.9 x 95 x 139 - 10mm | €168,47 | ||
| Φ9.92 x 95 x 139 - 10mm | €168,47 | ||
| Φ10 x 95 x 139 - 10mm | €168,47 | ||
| Φ10.1 x 106 x 155 - 12mm | €222,38 | ||
| Φ10.2 x 106 x 155 - 12mm | €222,38 | ||
| Φ10.3 x 106 x 155 - 12mm | €222,38 | ||
| Φ10.4 x 106 x 155 - 12mm | €222,38 | ||
| Φ10.5 x 106 x 155 - 12mm | €222,38 | ||
| Φ10.6 x 106 x 155 - 12mm | €222,38 | ||
| Φ10.7 x 106 x 155 - 12mm | €222,38 | ||
| Φ10.72 x 106 x 155 - 12mm | €222,38 | ||
| Φ10.8 x 106 x 155 - 12mm | €222,38 | ||
| Φ10.9 x 106 x 155 - 12mm | €222,38 | ||
| Φ11 x 106 x 155 - 12mm | €222,38 | ||
| Φ11.1 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.11 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.2 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.3 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.4 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.5 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.51 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.6 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.7 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.8 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.9 x 114 x 163 - 12mm | €222,38 | ||
| Φ11.91 x 114 x 163 - 12mm | €222,38 | ||
| Φ12 x 114 x 163 - 12mm | €222,38 | ||
| Φ12.1 x 133 x 182 - 14mm | €316,43 | ||
| Φ12.2 x 133 x 182 - 14mm | €316,43 | ||
| Φ12.3 x 133 x 182 - 14mm | €316,43 | ||
| Φ12.5 x 133 x 182 - 14mm | €316,43 | ||
| Φ12.7 x 133 x 182 - 14mm | €316,43 | ||
| Φ13 x 133 x 182 - 14mm | €316,43 | ||
| Φ13.1 x 133 x 182 - 14mm | €316,43 | ||
| Φ13.49 x 133 x 182 - 14mm | €316,43 | ||
| Φ13.5 x 133 x 182 - 14mm | €316,43 | ||
| Φ13.89 x 133 x 182 - 14mm | €316,43 | ||
| Φ14 x 133 x 182 - 14mm | €316,43 | ||
| Φ14.1 x 152 x 204 - 16mm | €394,18 | ||
| Φ14.2 x 152 x 204 - 16mm | €394,18 | ||
| Φ14.29 x 152 x 204 - 16mm | €394,18 | ||
| Φ14.5 x 152 x 204 - 16mm | €394,18 | ||
| Φ15 x 152 x 204 - 16mm | €394,18 | ||
| Φ15.1 x 152 x 204 - 16mm | €394,18 | ||
| Φ15.48 x 152 x 204 - 16mm | €394,18 | ||
| Φ15.5 x 152 x 204 - 16mm | €394,18 | ||
| Φ15.87 x 152 x 204 - 16mm | €394,18 | ||
| Φ16 x 152 x 204 - 16mm | €394,18 | ||
| Φ16.5 x 171 x 223 - 18mm | €492,30 | ||
| Φ16.67 x 171 x 223 - 18mm | €492,30 | ||
| Φ16.9 x 171 x 223 - 18mm | €492,30 | ||
| Φ17 x 171 x 223 - 18mm | €492,30 | ||
| Φ17.5 x 171 x 223 - 18mm | €492,30 | ||
| Φ18 x 171 x 223 - 18mm | €492,30 | ||
| Φ18.5 x 190 x 244 - 20mm | €583,78 | ||
| Φ18.9 x 190 x 244 - 20mm | €583,78 | ||
| Φ19 x 190 x 244 - 20mm | €583,78 | ||
| Φ19.05 x 190 x 244 - 20mm | €583,78 | ||
| Φ19.5 x 190 x 244 - 20mm | €583,78 | ||
| Φ20 x 190 x 244 - 20mm | €583,78 |
