Carbide drills 25xD with coolant, 51766
SKU: ST-51766-03
VENDOR: STOCK
Prices without VAT 24%
€658,72
DESCRIPTION
Coated carbide drill, 25xD with coolant supply and cylindrical shank. Ideal for drilling demanding materials like hardened steels, cast materials, and stainless steel, offering high performance and precision.

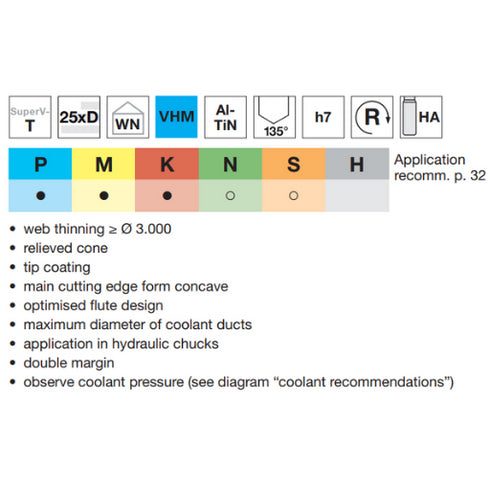

Features:
- Web thinning ≥ Ø 3.000
- Tip shape: Relieved cone with tip coating
- Optimized flute design
- Maximum diameter of coolant ducts
- Double margin for enhanced durability
- Suitable for structural and case hardened steels, free-cutting steels, heat-treatable steels, stainless steels, and cast iron
Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 x 85 x 125 - 6mm | €658,72 | ||
| Φ3.1 x 101 x 141 - 6mm | €609,91 | ||
| Φ3.17 x 101 x 141 - 6mm | €609,91 | ||
| Φ3.2 x 101 x 141 - 6mm | €609,91 | ||
| Φ3.3 x 101 x 141 - 6mm | €609,91 | ||
| Φ3.5 x 116 x 156 - 6mm | €609,91 | ||
| Φ3.57 x 116 x 156 - 6mm | €629,21 | ||
| Φ3.7 x 116 x 156 - 6mm | €629,21 | ||
| Φ3.8 x 116 x 156 - 6mm | €629,21 | ||
| Φ3.97 x 116 x 156 - 6mm | €629,21 | ||
| Φ4 x 116 x 156 - 6mm | €657,82 | ||
| Φ4.1 x 143 x 183 - 6mm | €667,63 | ||
| Φ4.2 x 143 x 183 - 6mm | €667,63 | ||
| Φ4.3 x 143 x 183 - 6mm | €667,63 | ||
| Φ4.37 x 143 x 183 - 6mm | €667,63 | ||
| Φ4.5 x 143 x 183 - 6mm | €739,42 | ||
| Φ4.6 x 143 x 183 - 6mm | €739,42 | ||
| Φ4.76 x 143 x 183 - 6mm | €753,80 | ||
| Φ4.8 x 143 x 183 - 6mm | €753,80 | ||
| Φ5 x 143 x 183 - 6mm | €768,53 | ||
| Φ5.1 x 170 x 210 - 6mm | €778,17 | ||
| Φ5.16 x 170 x 210 - 6mm | €782,91 | ||
| Φ5.41 x 170 x 210 - 6mm | €797,12 | ||
| Φ5.5 x 170 x 210 - 6mm | €801,87 | ||
| Φ5.56 x 170 x 210 - 6mm | €811,69 | ||
| Φ5.95 x 170 x 210 - 6mm | €840,14 | ||
| Φ6 x 170 x 210 - 6mm | €917,50 | ||
| Φ6.3 x 197 x 237 - 8mm | €936,10 | ||
| Φ6.35 x 197 x 237 - 8mm | €941,20 | ||
| Φ6.5 x 197 x 237 - 8mm | €946,26 | ||
| Φ6.75 x 197 x 237 - 8mm | €959,82 | ||
| Φ6.8 x 197 x 237 - 8mm | €959,82 | ||
| Φ7 x 197 x 237 - 8mm | €964,89 | ||
| Φ7.14 x 223 x 263 - 8mm | €1.037,67 | ||
| Φ7.5 x 223 x 263 - 8mm | €1.071,52 | ||
| Φ7.54 x 223 x 263 - 8mm | €1.074,92 | ||
| Φ7.94 x 223 x 263 - 8mm | €1.157,86 | ||
| Φ8 x 223 x 263 - 8mm | €1.166,33 | ||
| Φ8.33 x 250 x 294 - 10mm | €1.225,58 | ||
| Φ8.5 x 250 x 294 - 10mm | €1.274,67 | ||
| Φ8.73 x 250 x 294 - 10mm | €1.345,76 | ||
| Φ8.8 x 250 x 294 - 10mm | €1.367,77 | ||
| Φ9 x 250 x 294 - 10mm | €1.415,17 | ||
| Φ9.13 x 277 x 321 - 10mm | €1.415,17 | ||
| Φ9.52 x 277 x 321 - 10mm | €1.415,17 | ||
| Φ9.92 x 277 x 321 - 10mm | €1.415,17 | ||
| Φ10 x 277 x 321 - 10mm | €1.415,17 | ||
| Φ10.32 x 310 x 359 - 12mm | €1.487,95 | ||
| Φ10.72 x 310 x 359 - 12mm | €1.513,35 | ||
| Φ11 x 310 x 359 - 12mm | €1.538,73 | ||
| Φ11.11 x 337 x 386 - 12mm | €1.538,73 | ||
| Φ11.51 x 337 x 386 - 12mm | €1.608,14 | ||
| Φ11.91 x 337 x 386 - 12mm | €1.630,14 | ||
| Φ12 x 337 x 386 - 12mm | €1.630,14 | ||
| Φ12.3 x 388 x 437 - 14mm | €1.660,62 | ||
| Φ12.7 x 388 x 437 - 14mm | €1.782,50 | ||
| Φ13 x 388 x 437 - 14mm | €1.782,50 | ||
| Φ13.1 x 388 x 437 - 14mm | €1.933,17 | ||
| Φ13.49 x 388 x 437 - 14mm | €2.114,28 | ||
| Φ13.89 x 388 x 437 - 14mm | €2.236,17 | ||
| Φ14 x 388 x 437 - 14mm | €2.236,17 | ||
| Φ14.29 x 441 x 493 - 16mm | €2.622,12 | ||
| Φ15 x 441 x 493 - 16mm | €2.622,12 | ||
| Φ15.87 x 441 x 493 - 16mm | €2.622,12 | ||
| Φ16 x 441 x 493 - 16mm | €2.622,12 |
