Carbide drills 20xD with coolant, 51765
SKU: ST-51765-031
VENDOR: STOCK
Prices without VAT 24%
€557,11
DESCRIPTION

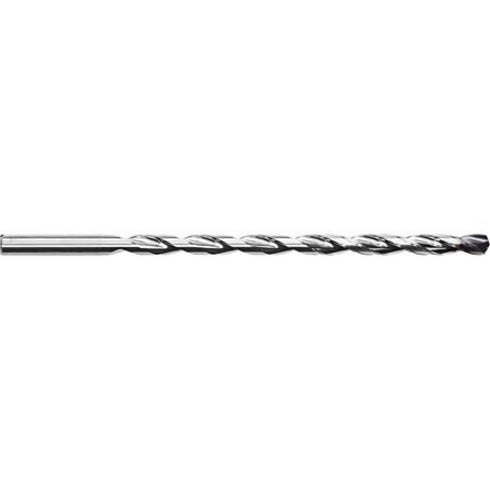

Coated carbide drill, 20xD with coolant supply and cylindrical shank. Designed for improved performance and cutting accuracy, ideal for drilling ferrous and stainless materials as well as cast materials.

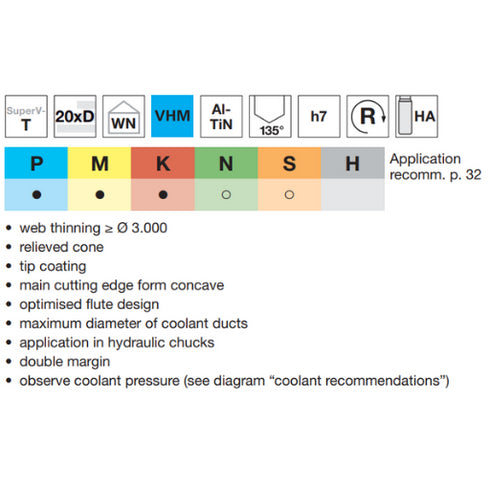

Features:
- Web thinning ≥ Ø 3.000
- Tip shape: Relieved cone with tip coating
- Optimized flute design
- Maximum diameter of coolant ducts
- Double margin for enhanced durability
- Suitable for structural and case hardened steels, free-cutting steels, heat-treatable steels, stainless steels, and cast iron

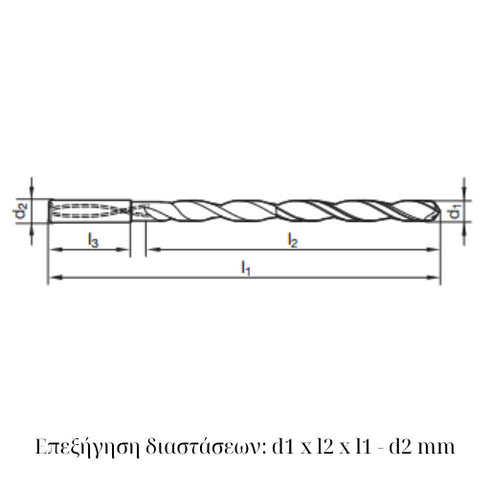

Dimensional explanation: d1 x l2 x l1 - d2 mm
For detailed information and cutting conditions, download the PDF file here.
| Name | Price | Quantity | Action |
|---|---|---|---|
| Φ3 x 70 x 110 - 6mm | €601,67 | ||
| Φ3.1 x 83 x 123 - 6mm | €557,11 | ||
| Φ3.17 x 83 x 123 - 6mm | €557,11 | ||
| Φ3.2 x 83 x 123 - 6mm | €557,11 | ||
| Φ3.3 x 83 x 123 - 6mm | €557,11 | ||
| Φ3.5 x 96 x 136 - 6mm | €557,11 | ||
| Φ3.57 x 96 x 136 - 6mm | €571,49 | ||
| Φ3.7 x 96 x 136 - 6mm | €571,49 | ||
| Φ3.8 x 96 x 136 - 6mm | €571,49 | ||
| Φ3.97 x 96 x 136 - 6mm | €571,49 | ||
| Φ4 x 96 x 136 - 6mm | €590,60 | ||
| Φ4.2 x 118 x 158 - 6mm | €638,70 | ||
| Φ4.3 x 118 x 158 - 6mm | €638,70 | ||
| Φ4.37 x 118 x 158 - 6mm | €638,70 | ||
| Φ4.5 x 118 x 158 - 6mm | €657,82 | ||
| Φ4.6 x 118 x 158 - 6mm | €657,82 | ||
| Φ4.76 x 118 x 158 - 6mm | €667,63 | ||
| Φ4.8 x 118 x 158 - 6mm | €667,63 | ||
| Φ5 x 118 x 158 - 6mm | €672,36 | ||
| Φ5.1 x 140 x 180 - 6mm | €677,30 | ||
| Φ5.16 x 140 x 180 - 6mm | €677,30 | ||
| Φ5.41 x 140 x 180 - 6mm | €696,25 | ||
| Φ5.5 x 140 x 180 - 6mm | €701,15 | ||
| Φ5.56 x 140 x 180 - 6mm | €705,90 | ||
| Φ5.95 x 140 x 180 - 6mm | €705,90 | ||
| Φ6 x 140 x 180 - 6mm | €778,17 | ||
| Φ6.3 x 162 x 202 - 8mm | €830,32 | ||
| Φ6.35 x 162 x 202 - 8mm | €830,32 | ||
| Φ6.5 x 162 x 202 - 8mm | €845,03 | ||
| Φ6.75 x 162 x 202 - 8mm | €849,79 | ||
| Φ6.8 x 162 x 202 - 8mm | €849,79 | ||
| Φ7 x 162 x 202 - 8mm | €859,93 | ||
| Φ7.14 x 183 x 223 - 8mm | €912,41 | ||
| Φ7.5 x 183 x 223 - 8mm | €932,73 | ||
| Φ7.54 x 183 x 223 - 8mm | €936,10 | ||
| Φ7.8 x 183 x 223 - 8mm | €936,10 | ||
| Φ7.94 x 183 x 223 - 8mm | €998,75 | ||
| Φ8 x 183 x 223 - 8mm | €1.008,90 | ||
| Φ8.33 x 205 x 249 - 10mm | €1.071,52 | ||
| Φ8.5 x 205 x 249 - 10mm | €1.108,77 | ||
| Φ8.73 x 205 x 249 - 10mm | €1.112,17 | ||
| Φ8.8 x 205 x 249 - 10mm | €1.112,17 | ||
| Φ9 x 205 x 249 - 10mm | €1.122,31 | ||
| Φ9.13 x 227 x 271 - 10mm | €1.122,31 | ||
| Φ9.52 x 227 x 271 - 10mm | €1.122,31 | ||
| Φ9.92 x 227 x 271 - 10mm | €1.122,31 | ||
| Φ10 x 227 x 271 - 10mm | €1.122,31 | ||
| Φ10.2 x 253 x 302 - 12mm | €1.144,32 | ||
| Φ10.32 x 253 x 302 - 12mm | €1.144,32 | ||
| Φ10.5 x 253 x 302 - 12mm | €1.144,32 | ||
| Φ10.72 x 253 x 302 - 12mm | €1.166,33 | ||
| Φ11 x 253 x 302 - 12mm | €1.181,55 | ||
| Φ11.11 x 274 x 323 - 12mm | €1.184,95 | ||
| Φ11.51 x 274 x 323 - 12mm | €1.201,87 | ||
| Φ11.8 x 274 x 323 - 12mm | €1.201,87 | ||
| Φ11.91 x 274 x 323 - 12mm | €1.225,58 | ||
| Φ12 x 274 x 323 - 12mm | €1.249,27 | ||
| Φ12.3 x 318 x 367 - 14mm | €1.318,67 | ||
| Φ12.5 x 318 x 367 - 14mm | €1.318,67 | ||
| Φ12.7 x 318 x 367 - 14mm | €1.415,17 | ||
| Φ13 x 318 x 367 - 14mm | €1.415,17 | ||
| Φ13.1 x 318 x 367 - 14mm | €1.538,73 | ||
| Φ13.49 x 318 x 367 - 14mm | €1.679,26 | ||
| Φ13.89 x 318 x 367 - 14mm | €1.775,73 | ||
| Φ14 x 318 x 367 - 14mm | €1.775,73 | ||
| Φ14.29 x 361 x 413 - 16mm | €2.087,19 | ||
| Φ15 x 361 x 413 - 16mm | €2.087,19 | ||
| Φ15.87 x 361 x 413 - 16mm | €2.087,19 | ||
| Φ16 x 361 x 413 - 16mm | €2.087,19 |
