Digital 3-Point Snap-Open Bore Gauge, DASQUA
SKU: 4700-1001
VENDOR: DASQUA
Prices without VAT 24%
€448,76
DESCRIPTION
High-precision digital 3-point snap-open bore gauge manufactured by DASQUA. Designed for quick, highly repeatable, and reliable measurement of internal diameters in precision machining operations.
Key Features:
-
Mechanism: Snap-Open lever action for fast insertion and measurement
-
Resolution: 0.001 mm / 0.00005"
-
Accuracy: High precision up to 0.004 mm / 0.00015" (smaller ranges) and 0.005 mm / 0.0002" (larger ranges)
-
Calibration: Includes setting ring gauge for accurate zero-point adjustment
-
Manufacturer: DASQUA

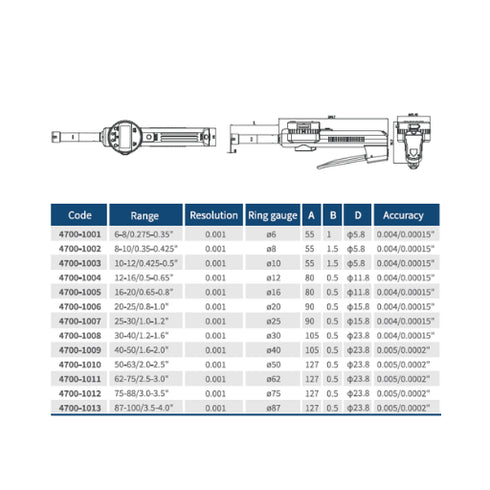

Dimensions: Range (mm)
| Name | Price | Quantity | Action |
|---|---|---|---|
| 6 - 8 mm / 0.275 - 0.35" | €448,76 | ||
| 8 - 10 mm / 0.35 - 0.425" | €433,80 | ||
| 10 - 12 mm / 0.425 - 0.5" | €433,80 | ||
| 12 - 16 mm / 0.5 - 0.65" | €433,80 | ||
| 16 - 20 mm / 0.65 - 0.8" | €448,76 | ||
| 20 - 25 mm / 0.8 - 1.0" | €478,67 | ||
| 25 - 30 mm / 1.0 - 1.2" | €493,64 | ||
| 30 - 40 mm / 1.2 - 1.6" | €523,56 | ||
| 40 - 50 mm / 1.6 - 2.0" | €538,52 | ||
| 50 - 63 mm / 2.0 - 2.5" | €598,37 | ||
| 62 - 75 mm / 2.5 - 3.0" | €628,28 | ||
| 75 - 88 mm / 3.0 - 3.5" | €658,21 | ||
| 87 - 100 mm / 3.5 - 4.0" | €718,05 |
