Die with PG thread (7 x 20 - 48 x 16) HSS DIN223
SKU: DIE-PG-720
VENDOR: SAPHIR
Prices without VAT 24%
€46,94
DESCRIPTION
Taps with PG (Panzergewinde) threads are cutting tools used for creating external cylindrical threads according to the German standard DIN 40430. PG threads were originally designed for electrical applications, such as threading conduits, wiring, and connectors.
Cylindrical Threads:
PG threads are cylindrical, meaning they are not tapered like NPT or BSPT threads.
Diameter and Pitch:
PG threads have a fixed thread angle of 80°.
Each PG size has a specific external diameter and thread pitch.
Standards:
They originate from the German DIN 40430 standard, mainly used in European countries.
Compatibility:
PG threads are not compatible with BSP or metric threads due to differences in angles and pitches.
Applications of PG Threads:
Electrical Installations:
Used for threading wires and connectors.
Commonly found in industrial panels, electrical conduits, and junction boxes.
Industrial Equipment:
For connecting and securing cable protection pipes to machinery and equipment.
Lighting:
Connecting cables in light fixtures and lighting constructions.

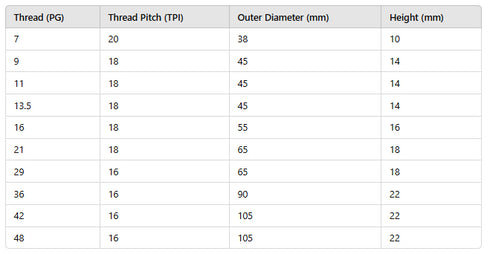

| Name | Price | Quantity | Action |
|---|---|---|---|
| 7 x 20 | €46,94 | ||
| 9 x 18 | €58,28 | ||
| 11 x 18 | €58,28 | ||
| 13.5 x 18 | €58,28 | ||
| 16 x 18 | €67,94 | ||
| 21 x 16 | €104,90 | ||
| 29 x 16 | €104,90 | ||
| 36 x 16 | €310,70 | ||
| 42 x 16 | €394,91 | ||
| 48 x 16 | €394,91 |
