Dial Test Indicator 12.5-0.01mm, MITUTOYO

SKU: 513-404-10E

VENDOR: MITUTOYO

Prices without VAT 24%

€117,80

DESCRIPTION

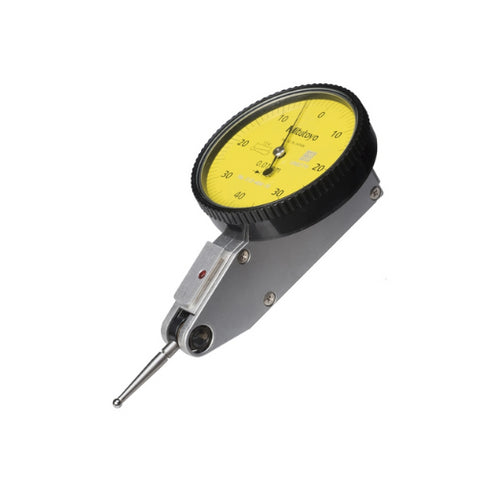

The Mitutoyo Dial Test Indicator (DTI) is a highly precise lever-type indicator, perfect for alignment tasks on machine tools. It features an anti-magnetic construction and automatically adapts to the measuring direction upon contact. Its jewelled movement ensures minimal friction and exceptionally smooth operation for maximum accuracy.

Features:

Analog display for easy reading of measurements
Automatic adaptation to measuring direction
Jewelled movement for minimal friction and resistance
Durable construction with carbide contact point for increased longevity
Supplied with a basic set of mounting accessories

Technical Specifications:

  • Measuring range: 0.8 mm
  • Graduation: 0.01 mm
  • Accuracy (MPE in 10 divisions): 5 μm
  • Accuracy (MPE in 1/2 revolution): 6 μm
  • Repeatability (R MPE): 3 μm
  • Measuring force: 0.01-0.3 N
  • Contact point diameter: 2 mm (code 103006)
  • Weight: 45 g
  • Contact point thread: M1.7 x 0.35
  • Delivered: In a box, with Ø8 mm stem and Ø2 mm contact point
    Name Price Quantity Action
    0.01-10mm / With Lug Back €117,80
