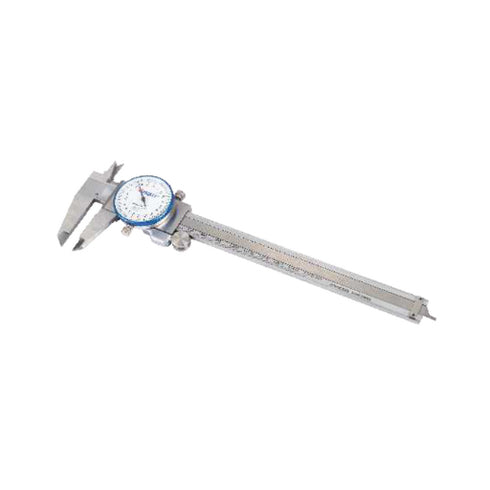

Dial Caliper, DASQUA
SKU: 1331-2115-A
VENDOR: DASQUA
Prices without VAT 24%
High-reliability dial caliper offering 50% higher accuracy than the DIN 862 standard. Manufactured according to ISO 13385-1 (DIN 862) and equipped with tough shock-proof gearing for dependable performance. Made entirely of solid stainless steel, with vacuum quenching heat treatment to ensure superior wear resistance and extended service life.
Supports four measuring functions: outside diameter, inside diameter, depth, and step measurement. Features a locking screw for stable readings and a strictly controlled measuring force of 2.5N–3.5N for consistent accuracy. Laser-etched lines and figures on a satin chrome finish provide excellent readability.
Features:
-
Type: Dial Caliper
-
Standard: ISO 13385-1 (DIN 862)
-
Accuracy: up to ±0.02 mm
-
Unit: mm
-
Measuring functions: Outside, Inside, Depth, Step
-
Material: Solid stainless steel
-
Shock-proof gearing
-
Vacuum quenched for wear resistance
-
Locking screw for stable readings
-
Measuring surface parallelism: ≤ 0.007 mm
-
Finish: Satin chrome with laser-etched markings

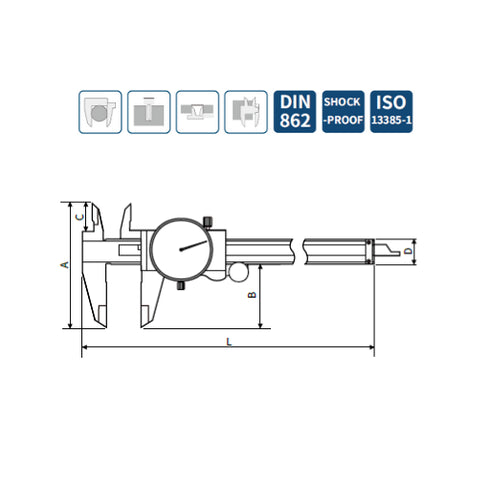

Dimensional explanation: Range / Accuracy
| Name | Price | Quantity | Action |
|---|---|---|---|
| 0 - 150mm / ±0.015 | €49,33 | ||
| 0 - 200mm / ±0.02 | €67,68 | ||
| 0 - 300mm / ±0.025 | €101,56 | ||
| 0 - 150mm / ±0.01 | €56,79 | ||
| 0 - 200mm / ±0.015 | €77,57 | ||
| 0 - 300mm / ±0.02 | €110,03 | ||
| 0 - 6" / ±0.00065" | €49,31 | ||
| 0 - 8" / ±0.00085" | €67,68 | ||
| 0 - 12" / ±0.001" | €101,56 |
