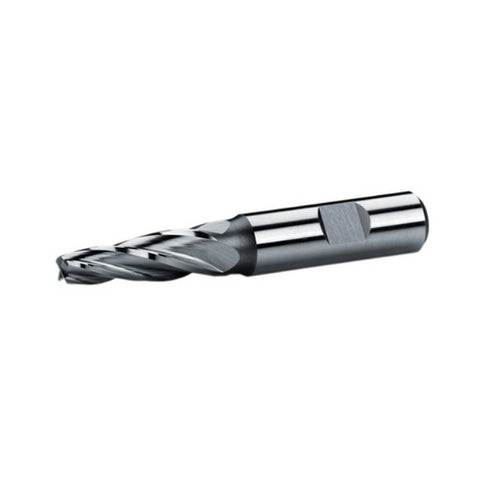

Conical End Mill 4F HSSCo
SKU: EM-CON-4F-152073
VENDOR: ΤΣΕΧΙΑΣ
Prices without VAT 24%
€76,28
DESCRIPTION
Conical 4-flute end mill made from cobalt-enriched high-speed steel (HSSCo), designed for machining hard materials and precision mold & die applications. The addition of cobalt (typically 5–8%) improves heat and wear resistance, while the tapered flute geometry enhances rigidity and tool life.
Features:
-
Material: HSS with cobalt (HSSCo)
-
Geometry: 4 flutes, conical/tapered design
-
Suitable for hard metals (e.g., stainless steel, nickel alloys)
-
Excellent for mold and die work or angled/tapered wall machining
-
Increased tool stiffness at the tip for precision operations

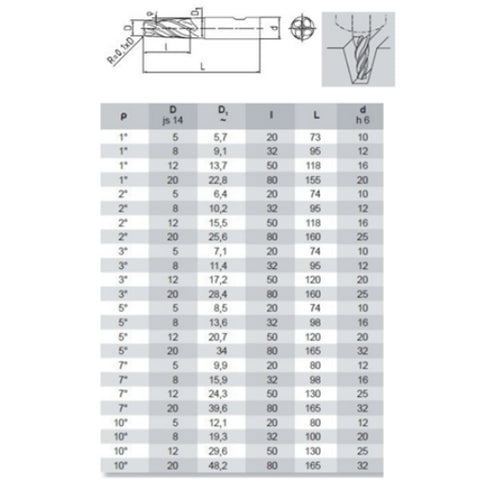

Dimensional explanation: p / D x l x L
| Name | Price | Quantity | Action |
|---|---|---|---|
| 1° / 5x20x73mm | €76,28 | ||
| 1° / 8x32x95mm | €87,63 | ||
| 1° / 12x50x118mm | €99,14 | ||
| 1° / 20x80x155mm | €109,28 | ||
| 2° / 5x20x73mm | €76,28 | ||
| 2° / 8x32x95mm | €87,63 | ||
| 2° / 12x50x118mm | €99,14 | ||
| 2° / 20x80x160mm | €126,74 | ||
| 3° / 5x20x74mm | €76,28 | ||
| 3° / 8x32x95mm | €87,63 | ||
| 3° / 12x50x120mm | €103,60 | ||
| 3° / 20x80x160mm | €126,74 | ||
| 5° / 5x20x74mm | €76,28 | ||
| 5° / 8x32x98mm | €100,84 | ||
| 5° / 12x50x120mm | €108,83 | ||
| 5° / 20x80x165mm | €161,92 | ||
| 7° / 5x20x80mm | €83,21 | ||
| 7° / 8x32x98mm | €100,84 | ||
| 7° / 12x50x130mm | €128,62 | ||
| 7° / 20x80x165mm | €171,22 | ||
| 10° / 5x20x80mm | €83,21 | ||
| 10° / 8x32x100mm | €105,87 | ||
| 10° / 12x50x130mm | €128,79 | ||
| 10° / 20x80x165mm | €185,46 |
