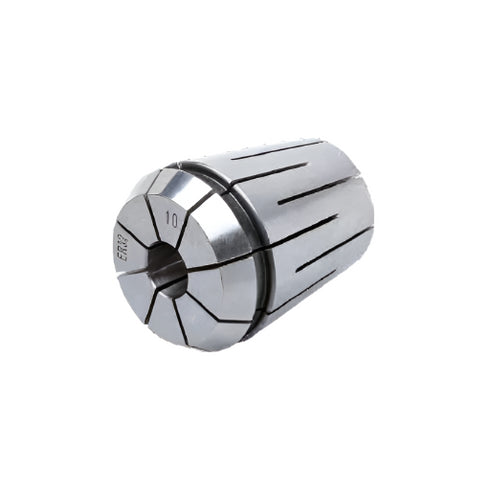

Collet with Sealing for High Pressure Cooling 120 bar with Internal Cooling
SKU: COL-ER20-3IC
VENDOR: ΓΕΡΜΑΝΙΑΣ
Prices without VAT 24%
€74,97
DESCRIPTION
The collet with sealing for high-pressure cooling 120 bar with internal cooling (IC) ER 20 is manufactured according to DIN 6499 B (ISO 15488 B). It is used for clamping straight shank tools in DIN 6499 collet chucks. The system features sealing for high-pressure cooling (up to 120 bar) and internal cooling, making it ideal for demanding applications requiring efficient cooling under high pressure.
Application:
-
Ideal for clamping straight shank tools in DIN 6499 collet chucks.
-
Internal cooling (IC) and sealing for high-pressure cooling up to 120 bar.
Only the nominal dimension d can be tightened.

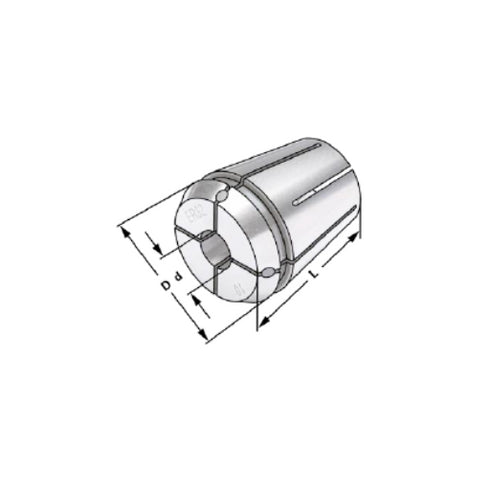

Dimension Explanation:
Size / d (mm)
| Name | Price | Quantity | Action |
|---|---|---|---|
| ER20 / 3mm | €74,97 | ||
| ER20 / 4mm | €74,97 | ||
| ER20 / 5mm | €74,97 | ||
| ER20 / 6mm | €74,97 | ||
| ER20 / 7mm | €74,97 | ||
| ER20 / 8mm | €74,97 | ||
| ER20 / 9mm | €74,97 | ||
| ER20 / 10mm | €74,97 | ||
| ER20 / 11mm | €74,97 | ||
| ER20 / 12mm | €74,97 | ||
| ER20 / 13mm | €74,97 |
