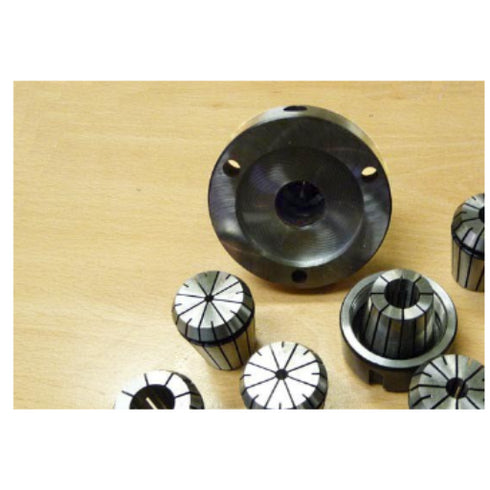

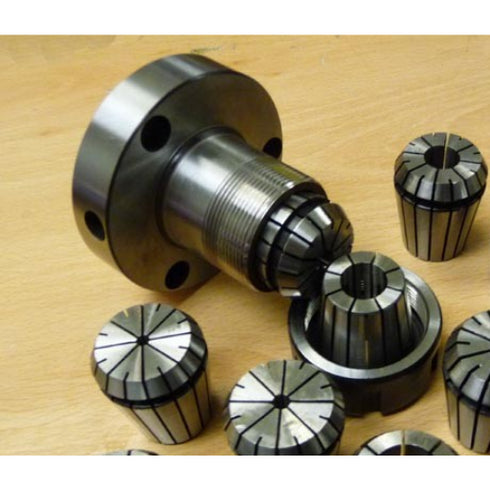

Collet Chuck with Flange
SKU: COL-FL-25100
VENDOR: ΓΕΡΜΑΝΙΑΣ
Prices without VAT 24%
€64,00
DESCRIPTION

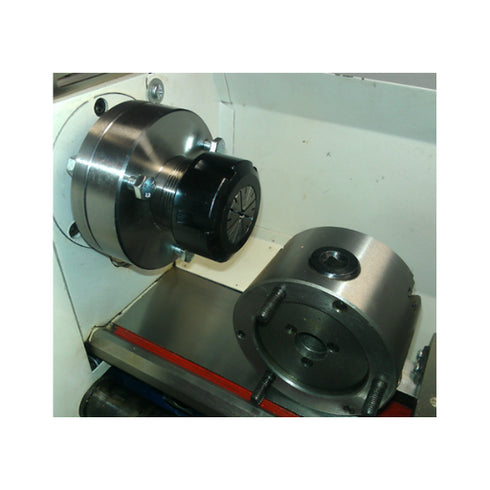

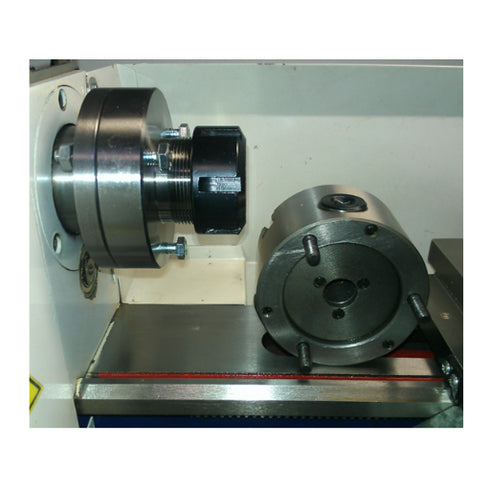

The Collet Chuck with Flange is ideal for securing workpieces on lathes using the ER collet system, providing precision and ease of use.
ER32 - Φ80
- a: 24mm
- b: 40mm
- c: 55mm
- d: 80mm
- e: 3x thread M6 (3x120°) on axis Ø65mm
- Runout accuracy: up to 0.005mm
- Collets can be ordered separately.
- Collets are not included.
ER25 - Φ100
- a: 20mm
- b: 40mm
- c: 72mm
- d: 100mm
- e: 3x thread M8 (3x120°) on axis Ø84mm
- Runout accuracy: up to 0.005mm
- Collets can be purchased separately.
- Collets are not included.
ER32 - Φ100
- a: 24mm
- b: 40mm
- c: 72mm
- d: 100mm
- e: 3x thread M8 (3x120°) on axis Ø85mm
- Runout accuracy: up to 0.005mm
- Collets can be ordered separately.
- Collets are not included.

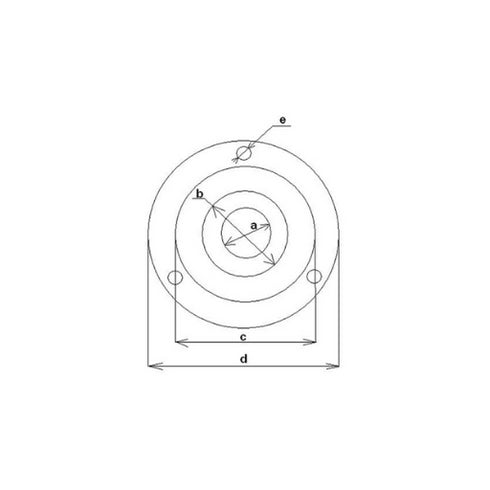

Dimensions explanation: ER / Φ
| Name | Price | Quantity | Action |
|---|---|---|---|
| ER25 / Φ100 | €64,00 | ||
| ER32 / Φ80 | €83,00 | ||
| ER32 / Φ100 | €93,00 |
